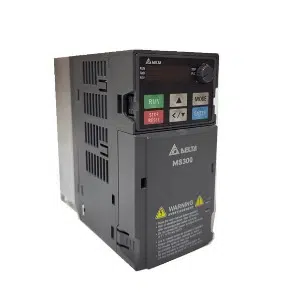

Delta VFD32AMS43ENSHA Variable Frequency Drive
The Delta VFD32AMS43ENSHA Variable Frequency Drive is designed for controlled motor operation, supporting 15 kW and 20 HP applications using a stable 460V, Three-phase AC 380 V ~480 V, 50 / 60 Hz input operation. It delivers a rated 32 A Heavy duty output current and 36 A Normal duty output current. The drive uses a Fan cooling method and features an IP40 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta MS300 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD32AMS43ENSHA |
Delta VFD32AMS43ENSHA Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V, 50 / 60 Hz |
| Applicable Motor Output ( kW) | 15 kW |
| Applicable Motor Output (HP) | 20 HP |
| Heavy Duty Rated Output Current (A) | 32 A |
| Normal Duty Rated Output Current (A) | 36 A |
| Cooling Method | Fan cooling |
| IP Level | IP40 (Anti-dust) |
| EMC Filter | None EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (ΓΒ±0.1%) |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W Γ H (mm) | 130Γ250 |
| Size: D (mm) | 185 |
