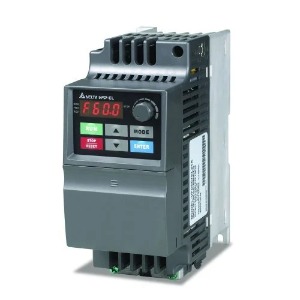

Delta VFD220E43C Variable Frequency Drive
The Delta VFD220E43C Variable Frequency Drive is designed for controlled motor operation, supporting 22 kW and 30 HP applications using a stable 460V Three-phase, 380-480V, 50/60Hz input operation. It delivers a rated 45 A output current with an 34 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta E Series.
| Brand | Delta |
| Product | VFD |
| Model Number | VFD220E43C |
Delta VFD220E43C Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP) | 30 HP |
| Output Capacity (kVA) | 34 kVA |
| Output Current (A) | 45 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ΒΊC to 60ΒΊC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | C: CANopen |
| Input Frequency Tolerance | Β±5% (47-63Hz) |
| Voltage Tolerance | Β±10% (342-528V) |
| Net Weight (kg) | 7.47 kg |
