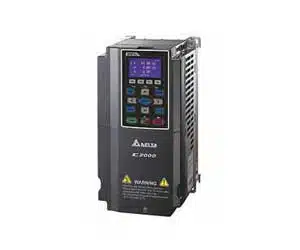

VFD220C43A: Delta VFD 22kW AC Drive
Technical Specifications of Delta VFD 22kW AC Drive VFD220C43A:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
π οΈ Get Quotes Instantly from Delta Vendors
Delta VFD 22kW AC Drive VFD220C43A Technical Specifications:
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 3 - phase AC 380V ~ 480V (-15%~+10% ), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 36 kVA |
| Output Current (A) Normal Duty | 45 A |
| Applicable Motor Output (kW) Normal Duty | 22 kW |
| Applicable Motor Output (HP) Normal Duty | 30 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97.8 |
| IP Level | IP20 |
| NEMA Protection Level | No NEMA Protection Level |
| Storage/Transportation Temperature | -25 ~ 70 |
| Braking Chopper | Built-IN Braking Chopper |
| Control Method | Pulse Width Modulated (PWM) |
| Installation Type | Wall mount |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Voltage Tolerance | 323 ~ 528 VAC |
| Drive Weight (Kg) | 9.8 Β± 1.5 kg |
Obtain a Quote for Delta VFD 22kW AC Drive, VFD220C43A at attractive prices. Core System Specifications of VFD220C43A are No NEMA Protection Level, Built-IN Braking Chopper, Pulse Width Modulated (PWM) & Wall mount. It functionality Includes 22 kW, 36 kVA & 45 A. Elevate Your Project with a Quote for your requirement of Delta VFD 22kW AC Drive. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
