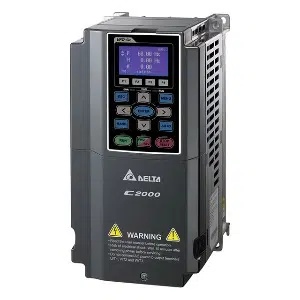

Delta VFD185C23A Variable Frequency Drive
The Delta VFD185C23A Variable Frequency Drive is designed for controlled motor operation, supporting 18.5 kW and 25 HP applications using a stable 230V, Three-Phase AC 200V ~ 240V input at 50 / 60Hz. It delivers a rated 75 A output current with an 30 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan Cooling thermal method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta C2000 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD185C23A |
Delta VFD185C23A Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-Phase AC 200V ~ 240V (-15%~+10%), 50/60Hz |
| Output Capacity (kVA)-NORMAL DUTY | 30 kVA |
| Output Current (A) -NORMAL DUTY | 75 A |
| Applicable Motor Output (kW)-NORMAL DUTY | 18.5 kW |
| Applicable Motor Output (HP)-NORMAL DUTY | 25 HP |
| Cooling Method | Fan Cooling |
| IP Level | IP20 |
| Braking Chopper | Built-in |
| Storage/Transportation Temperature | -25 ~ 70 |
| Input Frequency Tolerance | 47 ~ 63Hz |
| Efficiency (%) | 97.8 |
| V/F Curve | 4-point adjustable V/F curve and square curve |
| Control Method | Pulse Width Modulated (PWM) |
| Input Rated Voltage/Frequency | 323 ~ 528 VAC |
| Drive Weight (Kg) | 9.8 Β± 1.5 kg |
