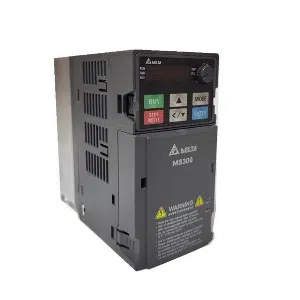

Delta VFD13AMS43AFSHA Variable Frequency Drive
The Delta VFD13AMS43AFSHA Variable Frequency Drive is designed for controlled motor operation, supporting 5.5 kW and 7.5 HP applications using a stable 460V, Three-phase AC 380 V ~480 V, 50 / 60 Hz input operation. It delivers a rated 13 A Heavy duty output current and 15.7 A Normal duty output current. The drive uses a Fan cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta MS300 Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD13AMS43AFSHA |
Delta VFD13AMS43AFSHA Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 460V, Three-phase AC 380 V ~480 V, 50 / 60 Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Heavy Duty Rated Output Current (A) | 13 A |
| Normal Duty Rated Output Current (A) | 15.7 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | Built-in EMC Filter |
| Safe Torque Off (STO) | Integrated STO |
| Model Type | High Speed Model |
| Braking Chopper | Built-in Braking Chopper |
| Output Frequency | 0.00 ~ 1500.0Hz (ΓΒ±0.1%) |
| Control Methods | V/F, SVC, FOC Sensorless |
| Size: W Γ H (mm) | 109Γ207 |
| Size: D (mm) | 187 |
