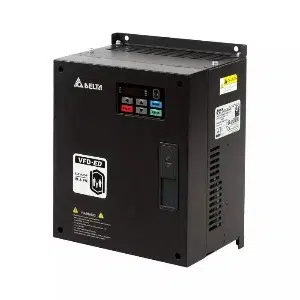

Delta VFD055ED23S Variable Frequency Drive
The Delta VFD055ED23S Variable Frequency Drive is designed for controlled motor operation, supporting 5.5 kW and 7.5 HP applications using a stable Three-phase 200 ~ 240 input voltage. It delivers a rated 24 A output current with an 9.5 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta ED Series.
| Brand | Delta |
| Product | VFD |
| Model Number | VFD055ED23S |
Delta VFD055ED23S Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 200 ~ 240 |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Capacity (kVA) | 9.5 kVA |
| Output Current (A) | 24 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Control Method | V / F, VF+PG, SVC, FOC+PG, FOC+PM |
| Storage/Transportation Temperature | -20 ΒΊC ~ 60 ΒΊC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | Adjustable V / F curve using 4 independent points |
| Version Type | S |
| Input Frequency Tolerance | Β±5% (47 ~ 63) |
| Voltage Tolerance | Β±10% (180 ~ 264) |
| Net Weight (kg) | 8 Kg |
