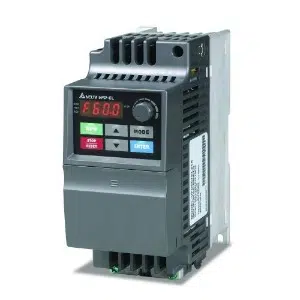

VFD055E23C: Delta 5.5kW 230V 3-Phase CANopen
Technical Specifications of Delta 5.5kW 230V 3-Phase CANopen VFD055E23C:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Capacity (kVA) | 9.5 kVA |
Delta 5.5kW 230V 3-Phase CANopen VFD055E23C Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 230V, Three-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 5.5 kW |
| Applicable Motor Output (HP) | 7.5 HP |
| Output Capacity (kVA) | 9.5 kVA |
| Output Current (A) | 25 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | C: CANopen |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight (kg) | 3.5 kg |
Get A Quote for Delta 5.5kW 230V 3-Phase CANopen, VFD055E23C at the best price. Here are the brief Technical Specifications of VFD055E23C are Below 90% RH (non-condensing), Adjustable V/F pattern, C: CANopen & IP20. And it offers 5.5 kW 7.5 HP & 9.5 kVA. It's Time to get a Quote for your requirement of Delta 5.5kW 230V 3-Phase CANopen. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
