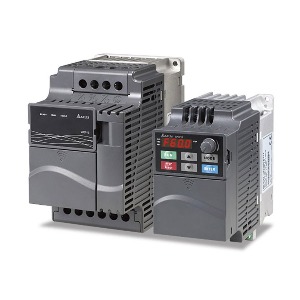

VFD022E21C: Delta 3HP 230V Single-Phase CANopen
Technical Specifications of Delta 3HP 230V Single-Phase CANopen VFD022E21C:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Output Capacity (kVA) | 4.2 kVA |
Delta 3HP 230V Single-Phase CANopen VFD022E21C Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Output Capacity (kVA) | 4.2 kVA |
| Output Current (A) | 11 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | C: CANopen |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight (kg) | 1.9 kg |
IndMALL Dealing in Delta 3HP 230V Single-Phase CANopen, VFD022E21C at the best rates. Operational Specifications for VFD022E21C are Below 90% RH (non-condensing), C: CANopen, Adjustable V/F pattern & IP20. And It Delivers 2.2 kW, 3 HP & 4.2 kVA. Unlock Exclusive Pricing with a Quote for your requirement of Delta 3HP 230V Single-Phase CANopen. Experience the advantage of our pricing and support against other Traders.
