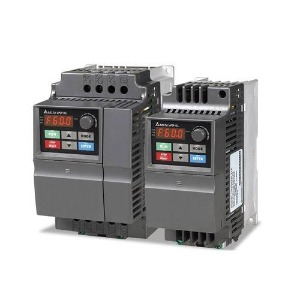

VFD007E21P: Delta 1HP Single-Phase Cold Plate
Technical Specifications of Delta 1HP Single-Phase Cold Plate VFD007E21P:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Capacity (kVA) | 1.6 kVA |
Delta 1HP Single-Phase Cold Plate VFD007E21P Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Capacity (kVA) | 1.6 kVA |
| Output Current (A) | 4.2 A |
| Cooling Method | Natural cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | P: Cold plate drive (frame A only) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight (kg) | 1.2 kg |
Give Us a Call for Delta 1HP Single-Phase Cold Plate, VFD007E21P at the lowest pricing. In-depth Technical Analysis of VFD007E21P includes Below 90% RH (non-condensing), P: Cold plate drive (frame A only), Adjustable V/F pattern & IP20. It functionality Includes 0.75 kW, 1 HP & 1.6 kVA. Elevate Your Project with a Quote for your requirement of Delta 1HP Single-Phase Cold Plate. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
