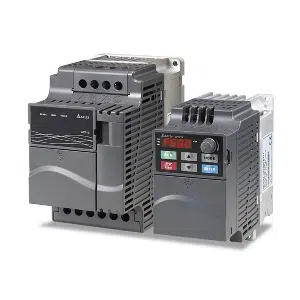

VFD007E11C: Delta 1HP 115V Single-Phase CANopen
Technical Specifications of Delta 1HP 115V Single-Phase CANopen VFD007E11C:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 115V, Single-phase 100-120V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Capacity (kVA) | 1.6 kVA |
Delta 1HP 115V Single-Phase CANopen VFD007E11C Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 115V, Single-phase 100-120V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.75 kW |
| Applicable Motor Output (HP) | 1 HP |
| Output Capacity (kVA) | 1.6 kVA |
| Output Current (A) | 4.2 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | C: CANopen |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (90-132V) |
| Net Weight (kg) | 1.2 kg |
IndMALL Offers Delta 1HP 115V Single-Phase CANopen, VFD007E11C at economical Choices. Product Tech Specs of VFD007E11C includes Below 90% RH (non-condensing), C: CANopen, Adjustable V/F pattern & IP20. And It Includes 0.75 kW, 1 HP & 1.6 kVA. Now's the Time to Secure a Quote for your requirement of Delta 1HP 115V Single-Phase CANopen. Trust in our superior pricing and more dedicated support over other Distributors.
