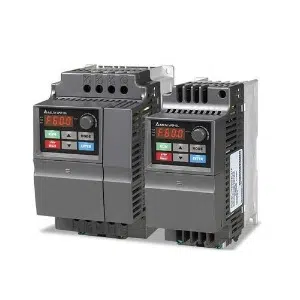

VFD004E21P: Delta 230V Single phase Cold Plate Drive
Technical Specifications of Delta 230V Single phase Cold Plate Drive VFD004E21P:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.4 kW |
| Applicable Motor Output (HP) | 0.5 HP |
| Output Capacity (kVA) | 1 kVA |
Delta 230V Single phase Cold Plate Drive VFD004E21P Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 230V, Single-phase, 200-240V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.4 kW |
| Applicable Motor Output (HP) | 0.5 HP |
| Output Capacity (kVA) | 1 kVA |
| Output Current (A) | 2.5 A |
| Cooling Method | Natural cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | P: Cold plate drive (frame A only) |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (180-264V) |
| Net Weight (kg) | 1.1 kg |
Ask for the Pricing of Delta 230V Single phase Cold Plate Drive, VFD004E21P at unbeatable prices. Detailed Specifications of VFD004E21P feature Below 90% RH (non-condensing), Adjustable V/F pattern, P: Cold plate drive (frame A only) & IP20. Moreover, it features 0.4 kW, 0.5 HP & 1 kVA. Now's the Time to Secure a Quote for your requirement of Delta 230V Single phase Cold Plate Drive. We're committed to offering more favorable pricing and more responsive support than other Traders.
