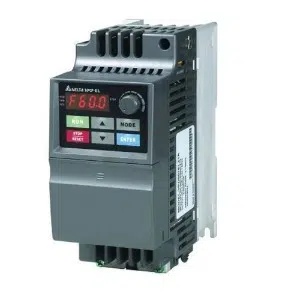

Delta VFD002EL21A Variable Frequency Drive
The Delta VFD002EL21A Variable Frequency Drive is designed for controlled motor operation, supporting 2.2 kW and 3 HP applications using a stable Single-phase, 200~240V input at 50 / 60Hz. It delivers a rated 11 A output current with an 4.2 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Fan cooling thermal method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta EL Series.
| Brand | Delta |
| Product Type | VFD |
| Model Number | VFD002EL21A |
Delta VFD002EL21A Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Input Voltage / Frequency | Single-phase, 200~240V, 50/60Hz |
| Output Current (A) | 11 A |
| Output Capacity (kVA) | 4.2 kVA |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Braking Chopper | Built-in |
| MODBUS COM | Built-in |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20βC~60βC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | Adjustable V/F pattern |
| Input Frequency Tolerance | Β±5% (47~63Hz) |
| Voltage Tolerance | Β±10% (180~264V) |
| Net Weight | 1.7 kg |
