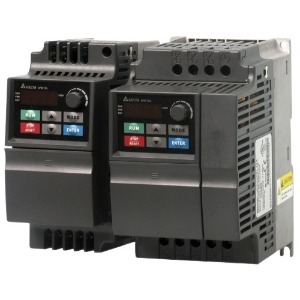

Delta VFD002EL11A Variable Frequency Drive
The Delta VFD002EL11A Variable Frequency Drive is designed for controlled motor operation, supporting 0.2 kW and 0.25 HP applications using a stable 115V, Single-phase 100~120V, 50/60Hz input operation. It delivers a rated 1.6 A output current with an 0.6 kVA output capacity, enabling dependable speed and torque adjustment across industrial equipment. The drive uses a Natural cooling method and features an IP20 enclosure suitable for cabinet-integrated environments requiring internal protection. Manufactured by Delta, part of the Delta Variable Frequency Drive family within the Delta EL Series.
| Brand | Delta |
| Product | VFD |
| Model Number | VFD002EL11A |
Delta VFD002EL11A Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 115V, Single-phase 100~120V, 50/60Hz |
| Applicable Motor Output ( kW) | 0.2 kW |
| Applicable Motor Output (HP) | 0.25 HP |
| Output Capacity (kVA) | 0.6 kVA |
| Output Current (A) | 1.6 A |
| Cooling Method | Natural cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | 20βC~60βC |
| Braking Chopper | Built-in Braking Chopper |
| Ambient Humidity | Below 90% RH (non-condensing) |
| MODBUS COM | Built-in |
| V/F Pattem | Adjustable V/F pattern |
| Input Frequency Tolerance | Β±5% (47~63Hz) |
| Voltage Tolerance | Β±10% (90~132V) |
| Net Weight (kg) | 1.1 kg |
