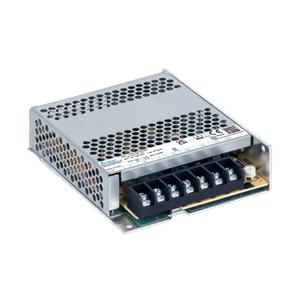

Delta PMT-D2V75W2BA - 5A 75.4W Panel Mount Power Supply

Technical Specifications of Delta PMT-D2V75W2BA 5A 75.4W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-D2V75W2BA

Delta 5A 75.4W Panel Mount Power Supply PMT-D2V75W2BA Technical Specifications:

Specification	Value
Output Current	5A,2.1A
Output Voltage	5V,24V
Output Voltage Adjustment Range	V1: Fixed; V2: 21.6 – 26.4V
Output Power	75.4W
Start-up Time	500ms typ. @ 115Vac & 230Vac
Hold-up Time	10ms typ. @ 115Vac, 50ms typ. @ 230Vac
Nominal Input Voltage	100-240Vac
Input Voltage Range	90-264Vac
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	1.4A typ. @ 115Vac, 0.85A typ. @ 230Vac
Efficiency at 100% load	85% typ. @ 230Vac
Leakage Current	< 0.5mA @ 240Vac/50Hz
Case Chassis / Cover	Aluminium / SGCC
Indicator	Green LED (DC OK)
Cooling System	Convection
Unit Weight	0.276 kg (0.61 lb)
Operating Temperature	-30°C to +70°C (-40°C Cold Start)
Storage Temperature	-40°C to +85°C
Operating Altitude	0 to 5,000 Meters (0 to 16,400 ft)
Pollution Degree	3
Over Voltage Category	II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Talk to Our Engineer for Delta 5A 75.4W Panel Mount Power Supply PMT-D2V75W2BA with exclusive offers. Core System Specifications of PMT-D2V75W2BA are 5A,2.1A Output Current and Output Voltage 5V,24V, 75.4W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240Vac, with an input voltage range of 90-264Vac, operating at a nominal input frequency of 50-60Hz. The input current is 1.4A typ. @ 115Vac, 0.85A typ. @ 230Vac, ensuring efficient performance. The Indicator Green LED (DC OK) smoothly within an operating temperature of -30°C to +70°C (-40°C Cold Start), making it ideal for diverse environments. It also features a storage temperature from -40°C to +85°C, ensuring durability. Don't Miss Out on a Quote for your requirement of 5A 75.4W Panel Mount Power Supply. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
