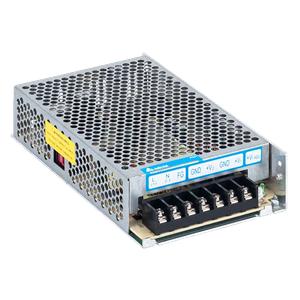

PMT-D2V100W1AH - Delta 3.5A 24V 99W Power Supply
Technical Specifications of Delta PMT-D2V100W1AH 3.5A 24V 99W Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMT-D2V100W1AH |
Delta 3.5A 24V 99W Power Supply PMT-D2V100W1AH Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 3.5A,3A |
| Output Voltage | 24V,5V |
| Output Voltage Adjustment Range | V1: 21.6-26.4Vdc |
| Output Power | 99W |
| Indicator | Green LED (DC OK) |
| Nominal Input Voltage | 100-120Vac, 200-240Vac (Selectable by Switch) |
| Input Voltage Range | 88-132Vac, 176-264Vac (Selectable by Switch) |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | < 2.00A@115Vac, < 1.20A @ 230Vac |
| Case Chassis / Cover | Aluminium / SGCC |
| Cooling System | Convection |
| Unit Weight | 0.42 kg (0.93 lb) |
| Operating Temperature | -10Β°C to +70Β°C |
| Storage Temperature | -25Β°C to +85Β°C |
Ask for the Pricing of Delta 3.5A 24V 99W Power Supply PMT-D2V100W1AH at unbeatable prices. Detailed Specifications of PMT-D2V100W1AH features 3.5A,3A, Output Current and 24V,5V, Output Voltage 99W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 2.00A@115Vac, < 1.20A @ 230Vac. Additionally, it can handle a Input Voltage Range of 88-132Vac, 176-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10Β°C to +70Β°C and offers storage safety between -25Β°C to +85Β°C. Now's the Time to Secure a Quote for your requirement of 3.5A 24V 99W Power Supply. We're committed to offering more favorable pricing and more responsive support than other Traders.
