During technical comparisons, PMT-48V350W2BRB appears alongside Weidmuller Power Supply, Delta VFD and Delta Drl 24V480W1En so engineers assess signal types, ingress protection, and ambient tolerances accurately.

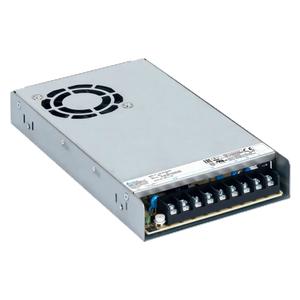

Delta PMT-48V350W2BRB - 48V 350.4W Panel Mount Power Supply
Technical Specifications of Delta PMT-48V350W2BRB 48V 350.4W Panel Mount Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMT-48V350W2BRB |
Delta 48V 350.4W Panel Mount Power Supply PMT-48V350W2BRB Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 7.3A |
| Output Voltage | 48V |
| Output Voltage Adjustment Range | 43.2-52.8Vdc |
| Output Power | 350.4W |
| Start-up Time | 1500ms typ. @ 115Vac & 230Vac |
| Hold-up Time | 20ms typ. @ 115Vac & 230Vac |
| Nominal Input Voltage | 100-120Vac, 200-240Vac (Selectable by Switch) |
| Input Voltage Range | 90-132Vac, 180-264Vac (Selectable by Switch) |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 6A typ. @ 115Vac, 3.4A typ. @ 230Vac |
| Efficiency at 100% load | 88% typ. @ 230Vac |
| Leakage Current | < 0.75mA @ 240Vac/50Hz |
| Case Chassis / Cover | SGCC |
| Indicator | Green LED (DC OK) |
| Cooling System | Force Cooling |
| Unit Weight | 0.833 kg (1.84 lb) |
| Operating Temperature | -30Β°C to +70Β°C (-40Β°C Cold Start) |
| Storage Temperature | -40Β°C to +85Β°C |
| Operating Altitude | 0 to 5,000 Meters (0 to 16,400 ft) |
| Pollution Degree | 2 |
| Over Voltage Category | II |
Give Us a Call for Delta 48V 350.4W Panel Mount Power Supply PMT-48V350W2BRB at the lowest pricing. In-depth Technical Analysis of PMT-48V350W2BRB feature 7.3A Output Current and Output Voltage 48V, 350.4W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch), with an input voltage range of 90-132Vac, 180-264Vac (Selectable by Switch), operating at a nominal input frequency of 50-60Hz. The input current is 6A typ. @ 115Vac, 3.4A typ. @ 230Vac, ensuring efficient performance. The Indicator Green LED (DC OK) smoothly within an operating temperature of -30Β°C to +70Β°C (-40Β°C Cold Start), making it ideal for diverse environments. It also features a storage temperature from -40Β°C to +85Β°C, ensuring durability. Elevate Your Project with a Quote for your requirement of 48V 350.4W Panel Mount Power Supply. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
