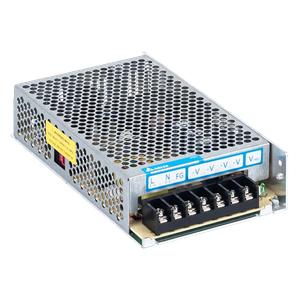

PMT-36V350W1AR - Delta 36V 349.2W Panel Mount Power Supply

Name: Delta PMT-36V350W1AR
Brand: Delta
SKU: PMT-36V350W1AR
Rating: 4.7 (4 reviews)

Technical Specifications of Delta PMT-36V350W1AR 36V 349.2W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-36V350W1AR

Delta 36V 349.2W Panel Mount Power Supply PMT-36V350W1AR Technical Specifications:

Specification	Value
Output Current	9.7A
Output Voltage	36V
Output Voltage Adjustment Range	32.4-39.6Vdc
Output Power	349.2W
Indicator	Green LED (DC OK)
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	90-132Vac, 180-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	7.00A typ. @115Vac, 4.00A typ. @ 230Vac
Case Chassis / Cover	Aluminium
Cooling System	Forced Cooling
Unit Weight	0.83 kg (1.83 lb)
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C

IndMALL Automation Dealing offers Delta 36V 349.2W Panel Mount Power Supply PMT-36V350W1AR at unbeatable prices. The Main Technical Parameters of PMT-36V350W1AR are 9.7A, Output Current and 36V, Output Voltage 349.2W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current 7.00A typ. @115Vac, 4.00A typ. @ 230Vac. Additionally, it can handle a Input Voltage Range of 90-132Vac, 180-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Take the First Step with a Quote for your requirement of 36V 349.2W Panel Mount Power Supply. Choose us for unparalleled pricing and support over other Dealers & Distributors.
