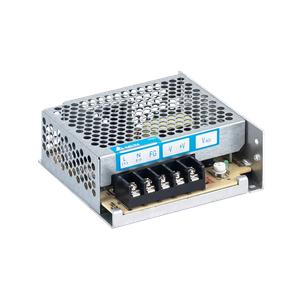

PMT-24V350W1AR - Delta 24V Panel Mount Power Supply

Name: Delta PMT-24V350W1AR
Brand: Delta
SKU: PMT-24V350W1AR
Rating: 4.8 (4 reviews)

Technical Specifications of Delta PMT-24V350W1AR 24V Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-24V350W1AR

Delta 24V Panel Mount Power Supply PMT-24V350W1AR Technical Specifications:

Specification	Value
Output Current	14.6A
Output Voltage	24V
Output Voltage Adjustment Range	20.0-26.4Vdc
Output Power	350.4W
Indicator	Green LED (DC OK)
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	90-132Vac, 180-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	< 7.00A @ 115Vac, < 4.00A @ 230Vac
Case Chassis / Cover	Aluminium
Cooling System	Forced Cooling
Unit Weight	0.82 kg (1.81 lb)
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C

Please speak to our Technical Engineer for Delta 24V Panel Mount Power Supply PMT-24V350W1AR at attractive prices. Technical Specs Summary of PMT-24V350W1AR includes 14.6A, Output Current and 24V, Output Voltage 350.4W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 7.00A @ 115Vac, < 4.00A @ 230Vac. Additionally, it can handle a Input Voltage Range of 90-132Vac, 180-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Match Your Needs with a Quote for your requirement of 24V Panel Mount Power Supply. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
