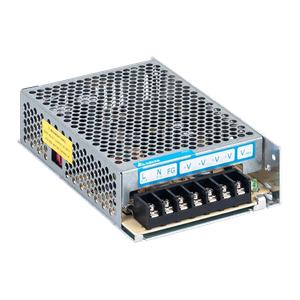

PMT-24V100W1AH - Delta 4.5Amp Power Supply
Technical Specifications of Delta PMT-24V100W1AH 4.5Amp Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMT-24V100W1AH |
Delta 4.5Amp Power Supply PMT-24V100W1AH Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 4.5A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22.8-26.4Vdc |
| Output Power | 108W |
| Indicator | Green LED (DC OK) |
| Nominal Input Voltage | 100-120Vac, 200-240Vac (Selectable by Switch) |
| Input Voltage Range | 85-132Vac, 176-264Vac (Selectable by Switch) |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | < 2.00A @ 115Vac, < 1.20A @ 230Vac |
| Case Chassis / Cover | Aluminium / SGCC |
| Cooling System | Convection |
| Unit Weight | 0.36 kg (0.79 lb) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
Give Us a Call for Delta 4.5Amp Power Supply PMT-24V100W1AH at the lowest pricing. In-depth Technical Analysis of PMT-24V100W1AH feature 4.5A, Output Current and 24V, Output Voltage 108W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 2.00A @ 115Vac, < 1.20A @ 230Vac. Additionally, it can handle a Input Voltage Range of 85-132Vac, 176-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Elevate Your Project with a Quote for your requirement of 4.5Amp Power Supply. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
