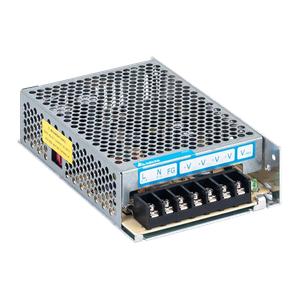

PMT-24V100W1AAB - Delta 24V 4.5A Panel Mount Power Supply

Name: Delta PMT-24V100W1AAB
Brand: Delta
SKU: PMT-24V100W1AAB
Rating: 4.8 (4 reviews)

Technical Specifications of Delta PMT-24V100W1AAB 24V 4.5A Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-24V100W1AAB

Delta 24V 4.5A Panel Mount Power Supply PMT-24V100W1AAB Technical Specifications:

Specification	Value
Output Current	4.5A
Output Voltage	24V
Output Voltage Adjustment Range	22.8-26.4Vdc
Output Power	108W
Indicator	Green LED (DC OK)
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	85-132Vac, 176-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	< 2.00A @ 115Vac, < 1.20A @ 230Vac
Case Chassis / Cover	Aluminium / SGCC
Cooling System	Convection
Unit Weight	0.36 kg (0.79 lb)
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C

Obtain a Quote for Delta 24V 4.5A Panel Mount Power Supply PMT-24V100W1AAB at economical prices. Specifications Overview for PMT-24V100W1AAB reveals 4.5A, Output Current and 24V, Output Voltage 108W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 2.00A @ 115Vac, < 1.20A @ 230Vac. Additionally, it can handle a Input Voltage Range of 85-132Vac, 176-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Take the First Step with a Quote for your requirement of 24V 4.5A Panel Mount Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
