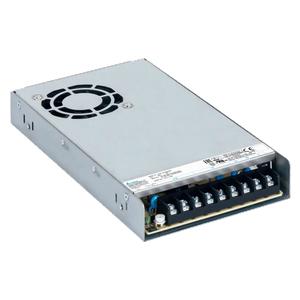

Delta PMT-12V350W2BMB - 29A 348W Panel Mount Power Supply

Technical Specifications of Delta PMT-12V350W2BMB 29A 348W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-12V350W2BMB

Delta 29A 348W Panel Mount Power Supply PMT-12V350W2BMB Technical Specifications:

Specification	Value
Output Current	29A
Output Voltage	12V
Output Voltage Adjustment Range	10.8-13.2Vdc
Output Power	348W
Start-up Time	1500ms typ. @ 115Vac & 230Vac
Hold-up Time	20ms typ. @ 115Vac & 230Vac
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	90-132Vac, 180-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	6A typ. @ 115Vac, 3.4A typ. @ 230Vac
Efficiency at 100% load	84.5% typ. @ 230Vac
Leakage Current	< 0.75mA @ 240Vac/50Hz
Case Chassis / Cover	SGCC
Indicator	Green LED (DC OK)
Cooling System	Force Cooling
Unit Weight	0.833 kg (1.84 lb)
Operating Temperature	-30°C to +70°C (-40°C Cold Start)
Storage Temperature	-40°C to +85°C
Operating Altitude	0 to 5,000 Meters (0 to 16,400 ft)
Pollution Degree	2
Over Voltage Category	II

Get A Quote for Delta 29A 348W Panel Mount Power Supply PMT-12V350W2BMB at the best price. Here are the brief Technical Specifications of PMT-12V350W2BMB are 29A Output Current and Output Voltage 12V, 348W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch), with an input voltage range of 90-132Vac, 180-264Vac (Selectable by Switch), operating at a nominal input frequency of 50-60Hz. The input current is 6A typ. @ 115Vac, 3.4A typ. @ 230Vac, ensuring efficient performance. The Indicator Green LED (DC OK) smoothly within an operating temperature of -30°C to +70°C (-40°C Cold Start), making it ideal for diverse environments. It also features a storage temperature from -40°C to +85°C, ensuring durability. It's Time to get a Quote for your requirement of 29A 348W Panel Mount Power Supply. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
