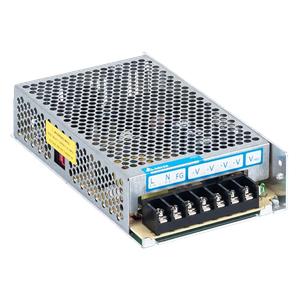

PMT-12V150W1AH - Delta 150W 12V Panel Mount Power Supply

Name: Delta PMT-12V150W1AH
Brand: Delta
SKU: PMT-12V150W1AH
Rating: 4.2 (4 reviews)

Technical Specifications of Delta PMT-12V150W1AH 150W 12V Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMT-12V150W1AH

Delta 150W 12V Panel Mount Power Supply PMT-12V150W1AH Technical Specifications:

Specification	Value
Output Current	12.5A
Output Voltage	12V
Output Voltage Adjustment Range	11.4-13.5Vdc
Output Power	150W
Indicator	Green LED (DC OK)
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	90-132Vac, 180-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	< 3.00A @ 115Vac, < 2.00A @ 230Vac
Case Chassis / Cover	Aluminium / SGCC
Cooling System	Convection
Unit Weight	0.48 kg (1.06 lb)
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C

Send Your Inquiry for Delta 150W 12V Panel Mount Power Supply PMT-12V150W1AH with cost-effective solutions. Essential Technical Specs of PMT-12V150W1AH are 12.5A, Output Current and 12V, Output Voltage 150W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 3.00A @ 115Vac, < 2.00A @ 230Vac. Additionally, it can handle a Input Voltage Range of 90-132Vac, 180-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Capture the Best Deal with a Quote for your requirement of 150W 12V Panel Mount Power Supply. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
