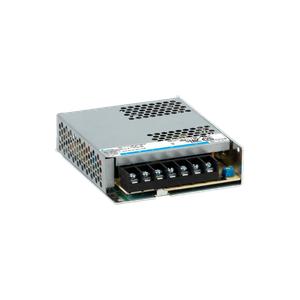

Delta PMR-36V240W1AT - 6.7A 240W Panel Mount Power Supply

Technical Specifications of Delta PMR-36V240W1AT 6.7A 240W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMR-36V240W1AT

Delta 6.7A 240W Panel Mount Power Supply PMR-36V240W1AT Technical Specifications:

Specification	Value
Output Current	6.7A
Output Voltage	36V
Output Voltage Adjustment Range	32.4-39.6 Vdc
Output Power	240W
Start-up Time	500 ms typ. @ 115 Vac & 230 Vac
Hold-up Time	16 ms typ. @ 115 Vac & 230 Vac
Max. Power	241.2 W Max.
Rise Time	30 ms typ. @ 115 Vac & 230 Vac
Nominal Input Voltage	100-240 Vac
Input Voltage Range	90-264 Vac
Nominal Input Frequency	50-60 Hz
Input Frequency Range	47-63Hz
DC Input Voltage Range	127-375 Vdc
Input Current	2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac
Input Power (Standby Mode)	0.5 W typ. @ 230 Vac
Case Chassis / Cover	Aluminum / SGCC
Indicator	Green LED (DC OK)
Cooling System	Convection
Wire	AWG 18-12
Terminal	M3.5 x 9 Pins (Rated 300 V / 20 A)
Unit Weight	0.45 kg (0.99 lb)
Operating Temperature	-30°C to +70°C ( -40°C Cold Start )
Storage Temperature	-40°C to +85°C
Power De-rating	> 50°C de-rate power by 2% / °C < 100Vac de-rate power by 1% / V (90% load @ 90 Vac)
Operating Humidity	20 to 90% (Non-Condensing)
Over Voltage Category	II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Ask for the Pricing of Delta 6.7A 240W Panel Mount Power Supply PMR-36V240W1AT at unbeatable prices. Detailed Specifications of PMR-36V240W1AT features 6.7A Output Current and Output Voltage 36V, 240W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240 Vac, with an input voltage range of 90-264 Vac, operating at a nominal input frequency of 50-60 Hz. The input current is 2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature range of -30°C to +70°C ( -40°C Cold Start ), making it ideal for diverse environments. It also features a storage temperature range from -40°C to +85°C, ensuring durability. Now's the Time to Secure a Quote for your requirement of 6.7A 240W Panel Mount Power Supply. We're committed to offering more favorable pricing and more responsive support than other Traders.
