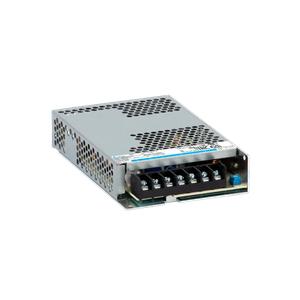

Delta PMR-24V240W1AT - 10 Amp 24VDC Power Supply
Technical Specifications of Delta PMR-24V240W1AT 10 Amp 24VDC Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMR-24V240W1AT |
Delta 10 Amp 24VDC Power Supply PMR-24V240W1AT Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 10A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 21.6-26.4 Vdc |
| Output Power | 240W |
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac |
| Hold-up Time | 16 ms typ. @ 115 Vac & 230 Vac |
| Max. Power | 240.0 W Max. |
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac |
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 127-375 Vdc |
| Input Current | 2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac |
| Input Power (Standby Mode) | 0.5 W typ. @ 230 Vac |
| Case Chassis / Cover | Aluminum / SGCC |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Wire | AWG 18-12 |
| Terminal | M3.5 x 9 Pins (Rated 300 V / 20 A) |
| Unit Weight | 0.45 kg (0.99 lb) |
| Operating Temperature | -30Β°C to +70Β°C ( -40Β°C Cold Start ) |
| Storage Temperature | -40Β°C to +85Β°C |
| Power De-rating | > 50Β°C de-rate power by 2% / Β°C < 100Vac de-rate power by 1% / V (90% load @ 90 Vac) |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) |
Obtain a Quote for Delta 10 Amp 24VDC Power Supply PMR-24V240W1AT at economical prices. Specifications Overview for PMR-24V240W1AT reveals 10A Output Current and Output Voltage 24V, 240W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240 Vac, with an input voltage range of 90-264 Vac, operating at a nominal input frequency of 50-60 Hz. The input current is 2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature range of -30Β°C to +70Β°C ( -40Β°C Cold Start ), making it ideal for diverse environments. It also features a storage temperature range from -40Β°C to +85Β°C, ensuring durability. Take the First Step with a Quote for your requirement of 10 Amp 24VDC Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
