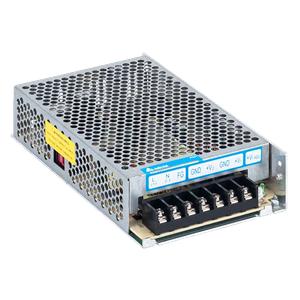

PML-D2V100W1AA - Delta 3.5A 99W Panel Mount Power Supply

Name: Delta PML-D2V100W1AA
Brand: Delta
SKU: PML-D2V100W1AA
Rating: 4.7 (4 reviews)

Technical Specifications of Delta PML-D2V100W1AA 3.5A 99W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PML-D2V100W1AA

Delta 3.5A 99W Panel Mount Power Supply PML-D2V100W1AA Technical Specifications:

Specification	Value
Output Current	3.5A,3A
Output Voltage	24V,5V
Output Voltage Adjustment Range	V1: 21.6-26.4Vdc
Output Power	99W
Indicator	Green LED (DC OK)
Nominal Input Voltage	100-120Vac, 200-240Vac (Selectable by Switch)
Input Voltage Range	88-132Vac, 176-264Vac (Selectable by Switch)
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
Input Current	< 2.00A@115Vac, < 1.20A @ 230Vac
Case Chassis / Cover	Aluminium / SGCC
Cooling System	Convection
Unit Weight	0.42 kg (0.93 lb)
Operating Temperature	-10°C to +70°C
Storage Temperature	-25°C to +85°C

Please speak to our Technical Engineer for Delta 3.5A 99W Panel Mount Power Supply PML-D2V100W1AA at attractive prices. Technical Specs Summary of PML-D2V100W1AA includes 3.5A,3A, Output Current and 24V,5V, Output Voltage 99W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-120Vac, 200-240Vac (Selectable by Switch) and supports a frequency range of 47-63Hz and Input Current < 2.00A@115Vac, < 1.20A @ 230Vac. Additionally, it can handle a Input Voltage Range of 88-132Vac, 176-264Vac (Selectable by Switch). Nominal Input Frequency 50-60Hz designed for harsh conditions, it operates reliably within an Operating Temperature of -10°C to +70°C and offers storage safety between -25°C to +85°C. Match Your Needs with a Quote for your requirement of 3.5A 99W Panel Mount Power Supply. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
