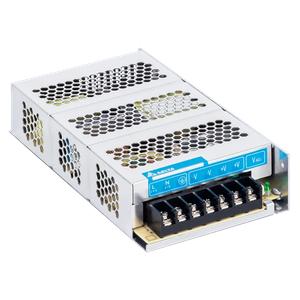

PMH-24V200WCBS - Delta 8.33A 200W Panel Mount Power Supply
Technical Specifications of Delta PMH-24V200WCBS 8.33A 200W Panel Mount Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMH-24V200WCBS |
Delta 8.33A 200W Panel Mount Power Supply PMH-24V200WCBS Technical Specifications:
| Specification | Value |
|---|---|
| Ouput Current | 8.33A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22-28Vdc |
| Output Power | 200W |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | < 2.20A @ 115Vac, < 1.2A @ 230Vac |
| Efficiency at 100% load | > 89.5% @ 115Vac, > 91.5% @ 230Vac |
| Inrush Current | - |
| Leakage Current | < 0.75mA @ 240Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | - |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | - |
| Unit Weight | 0.61 kg (1.34 lb) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -30°C to +85°C |
| Operating Altitude | - |
| Pollution Degree | 2 |
| Over Voltage Category | II |
Obtain a Quote for Delta 8.33A 200W Panel Mount Power Supply PMH-24V200WCBS at economical prices. Specifications Overview for PMH-24V200WCBS reveals 8.33A Output Current and Output Voltage 24V, 200W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240Vac, with an input voltage range of 85-264Vac, operating at a nominal input frequency of 50-60Hz. The input current is < 2.20A @ 115Vac, < 1.2A @ 230Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature of -30°C to +70°C, making it ideal for diverse environments. It also features a storage temperature from -30°C to +85°C, ensuring durability. Take the First Step with a Quote for your requirement of 8.33A 200W Panel Mount Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
