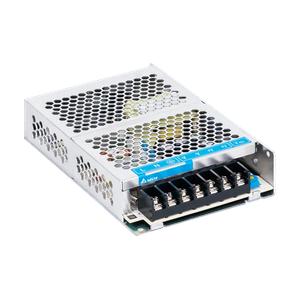

PMH-24V150WCLT - Delta 156W 24V Panel Mount Power Supply
Technical Specifications of Delta PMH-24V150WCLT 156W 24V Panel Mount Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | PMH-24V150WCLT |
Delta 156W 24V Panel Mount Power Supply PMH-24V150WCLT Technical Specifications:
| Specification | Value |
|---|---|
| Ouput Current | 6.5A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 156W |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | < 2.80A @ 115Vac, < 1.60A @ 230Vac |
| Efficiency at 100% load | > 87.0% @ 115Vac, > 89.0% @ 230Vac |
| Inrush Current | (Cold Start) < 40A @ 115Vac, < 80A @ 230Vac |
| Leakage Current | < 0.75mA @ 240Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | - |
| Unit Weight | 0.41 Kg (0.90 lb) |
| Operating Temperature | -30Β°C to +70Β°C |
| Storage Temperature | -40Β°C to +85Β°C |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 3 |
| Over Voltage Category | II |
Get A Quote for Delta 156W 24V Panel Mount Power Supply PMH-24V150WCLT at the best price. Here are the brief Technical Specifications of PMH-24V150WCLT are 6.5A Output Current and Output Voltage 24V, 156W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240Vac, with an input voltage range of 85-264Vac, operating at a nominal input frequency of 50-60Hz. The input current is < 2.80A @ 115Vac, < 1.60A @ 230Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature of -30Β°C to +70Β°C, making it ideal for diverse environments. It also features a storage temperature from -40Β°C to +85Β°C, ensuring durability. It's Time to get a Quote for your requirement of 156W 24V Panel Mount Power Supply. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
