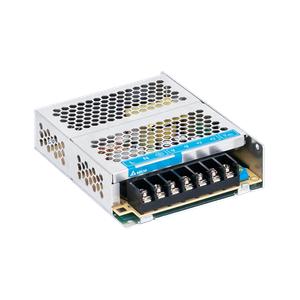

PMH-24V100WCMS - Delta 3.8A 91W Panel Mount Power Supply

Name: Delta PMH-24V100WCMS
Brand: Delta
SKU: PMH-24V100WCMS
Rating: 4.7 (4 reviews)

Technical Specifications of Delta PMH-24V100WCMS 3.8A 91W Panel Mount Power Supply

Brand	Delta
Product Type	SMPS
Product	PMH-24V100WCMS

Delta 3.8A 91W Panel Mount Power Supply PMH-24V100WCMS Technical Specifications:

Specification	Value
Ouput Current	3.8A
Output Voltage	24V
Output Voltage Adjustment Range	22-24Vdc
Output Power	91W
Nominal Input Voltage	100-240Vac
Input Voltage Range	85-264Vac
Nominal Input Frequency	50-60Hz
Input Frequency Range	47-63Hz
DC Input Voltage Range	120-375Vdc
Input Current	< 1.90A @ 115Vac, < 1.20A @ 230Vac
Efficiency at 100% load	> 86% @115Vac, > 88% @ 230Vac
Inrush Current	(Cold Start) < 25A @ 115Vac, < 50A @ 230Vac
Leakage Current	< 0.75mA @ 240Vac
Case Chassis / Cover	Aluminium
Indicator	Green LED (DC OK)
Cooling System	Convection
Noise Sound Pressure Level (SPL)	-
Unit Weight	0.31 kg (0.68 lb)
Operating Temperature	-30°C to +70°C
Storage Temperature	-40°C to +85°C
Operating Altitude	0 to 5,000 Meters (16,400 ft.)
Pollution Degree	2
Over Voltage Category	II

Ask for the Pricing of Delta 3.8A 91W Panel Mount Power Supply PMH-24V100WCMS at unbeatable prices. Detailed Specifications of PMH-24V100WCMS features 3.8A Output Current and Output Voltage 24V, 91W Output Power at competitive prices. Key technical parameters include a nominal input voltage of 100-240Vac, with an input voltage range of 85-264Vac, operating at a nominal input frequency of 50-60Hz. The input current is < 1.90A @ 115Vac, < 1.20A @ 230Vac, ensuring efficient performance. The power supply operates smoothly within an operating temperature of -30°C to +70°C, making it ideal for diverse environments. It also features a storage temperature from -40°C to +85°C, ensuring durability. Now's the Time to Secure a Quote for your requirement of 3.8A 91W Panel Mount Power Supply. We're committed to offering more favorable pricing and more responsive support than other Traders.
