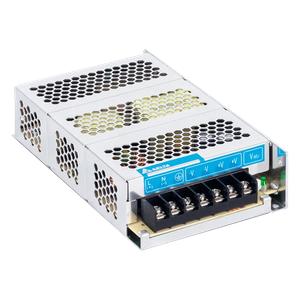

Delta PMC-24V150W1BL 6.25A 150W 24V Panel Mount Power Supply
Delta PMC-24V150W1BL 6.25A 150W 24V Panel Mount Power Supply ensures reliable DC output for industrial automation, embedded electronics, and control cabinets. Part of Delta Automation Solutions, the Delta Power Supply range, and the Delta PMC SMPS Series, this energy-efficient unit combines compact design, stable voltage delivery, and easy integration for diverse low-voltage DC applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMC-24V150W1BL |
Delta 150 Watt 24V Power Supply PMC-24V150W1BL Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 6.25A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22-28Vdc |
| Output Power | 150W |
| PARD | < 100mVpp |
| Start-up Time | < 3000ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 125-250Vdc |
| Input Frequency Range | 47-63Hz |
| Nominal DC Input Voltage | 125-250Vdc |
| DC Input Voltage Range | 125-375Vdc |
| Input Current | < 1.70A @ 115Vac, < 1.00A @ 230Vac |
| Leakage Current | < 1mA @ 240Vac |
| Power Dissipation | < 0.85W @ 115Vac, < 0.75W @ 230Vac @0% load < 18.5W @ 115Vac, < 14.8W @ 230Vac @100% load |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Input/Output Terminal | - |
| Unit Weight | 0.54 kg (1.19 lb) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Over Voltage Category | II |
The Delta PMC-24V150W1BL 6.25A 150W 24V Panel Mount Power Supply is engineered for demanding industrial and automation applications that require stable and dependable DC power. Delivering 6.25A at 24V with a total power output of 150W, it efficiently powers PLCs, sensors, relays, and other embedded devices, ensuring reliable operation in control cabinets, automation panels, and low-voltage systems. Its energy-efficient design reduces input current, minimizes heat generation, and extends the lifespan of both the supply and connected components. The integrated Green LED DC OK indicator provides instant operational feedback, enabling engineers and operators to monitor status at a glance. Its panel mount form factor ensures compact, organized installation, conserving space while allowing easy maintenance access. With AC input compatibility of 100–240Vac, DC input from 125–250Vdc, and a wider DC input range of 125–375Vdc, the unit adapts seamlessly to varied industrial power conditions. Built to withstand harsh operating environments, it functions reliably between -10°C and +70°C, with storage safety from -25°C to +85°C. Sourcing this supply through IndMALL guarantees competitive pricing, fast quotations, and dedicated technical support. Combining robust voltage regulation, energy efficiency, and industrial-grade durability, the Delta PMC-24V150W1BL provides engineers and integrators with a reliable, compact, and cost-effective solution for critical automation and embedded applications.
