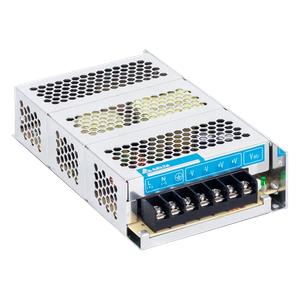

Delta PMC-24V150W2AA 6.25A 150W 24V Panel Mount Power Supply
Delta PMC-24V150W2AA 6.25A 150W 24V Panel Mount Power Supply is ideal for industrial automation, embedded electronics, and control panels. Part of Delta Automation Solutions, the Delta Power Supply range, and the Delta PMC SMPS Series, it combines compact design, precise voltage output, and efficient energy usage for diverse low-voltage DC applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMC-24V150W2AA |
Delta 6.25Amp Panel Mount Power Supply PMC-24V150W2AA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 6.25A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22-28Vdc |
| Output Power | 150W |
| PARD | <100mVpp |
| Start-up Time | < 1000ms @ nominal input (100% load) |
| Nominal Input Voltage | 200-240Vac |
| Input Voltage Range | 180-264Vac |
| Nominal Input Frequency | 220-250Vdc |
| Input Frequency Range | 47-63Hz |
| Nominal DC Input Voltage | 220-250Vdc |
| DC Input Voltage Range | 220-375Vdc |
| Input Current | < 1.60A @ 230Vac |
| Leakage Current | < 1mA @ 240Vac |
| Power Dissipation | - |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | <40dBA |
| Input/Output Terminal | M3.5 x 7 Pins (Rated 300V/15A) |
| Unit Weight | 0.50 kg (1.10 lb) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Over Voltage Category | - |
The Delta PMC-24V150W2AA 6.25A 150W 24V Panel Mount Power Supply is designed for industrial environments and automation systems that demand stable and dependable DC output. Delivering 6.25A at 24V with a total power of 150W, it reliably powers PLCs, relays, sensors, and other embedded devices, making it ideal for control panels and low-voltage systems. Its energy-efficient design minimizes input current, reducing heat and extending operational life. The integrated Green LED DC OK indicator provides quick operational feedback, allowing engineers and operators to monitor system status with ease. The compact panel mount form factor ensures neat installation, optimized space utilization, and easy maintenance access. With AC input compatibility of 200–240Vac and DC input capability of 220–250Vdc (with a wider range of 220–375Vdc), this unit adapts to fluctuating industrial power conditions seamlessly. Built for harsh environments, it functions reliably between -10°C and +70°C and can be stored safely from -25°C to +85°C. Choosing the Delta PMC-24V150W2AA from IndMALL guarantees competitive pricing, fast quotations, and dedicated technical support. Combining robust electrical performance, energy efficiency, and durability, this 6.25A Panel Mount Power Supply provides engineers and integrators with a trusted, long-term solution for industrial automation and embedded applications.
