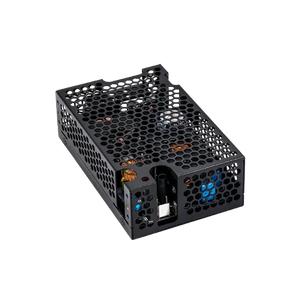

MDS-300ADB48 AB - Delta 300W 48V Power Supply
Technical Specifications of Delta MDS-300ADB48 AB 300W 48V Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | MDS-300ADB48 AB |
Delta 300W 48V Power Supply MDS-300ADB48 AB Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 6.25A |
| Output Voltage | 48V |
| Line Regulation | Β±0.5% |
| Output Power | 300W |
| Load Regulation | Β±1% |
| Start-up Time | 2000ms @ 115Vac |
| Rise Time | 100ms |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 4A |
| Case Chassis / Cover | Enclosed cover |
| Unit Weight | 0.61 kg (1.34 lb) |
| Operating Temperature | Absolute Maximum/Minimum Rating. -10Β°C to +70Β°C. Forced air: Linearly derate from 100% load at 50Β°C, to 50% load at 70Β°C (2.5%/ degree centigrade) Convection air: Linearly derate from 100% load at 50Β°C, to 43% load at 70Β°C (2.8%/ degree centigrad |
| Storage Temperature | -40Β°C to +85Β°C |
Call us for Delta 300W 48V Power Supply MDS-300ADB48 AB at the best rates. Technical Attributes of MDS-300ADB48 AB are 6.25A Output Current and 48V, Output Voltage 300W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-240Vac and supports a frequency range of 47-63Hz. Additionally, it can handle with an input voltage range from 90-264Vac. This power supply features a compact design with an input current of 4A making it energy-efficient ensuring easy monitoring. Designed for harsh conditions, it operates reliably within an Operating Temperature of Absolute Maximum/Minimum Rating. -10Β°C to +70Β°C. Forced air: Linearly derate from 100% load at 50Β°C, to 50% load at 70Β°C (2.5%/ degree centigrade) Convection air: Linearly derate from 100% load at 50Β°C, to 43% load at 70Β°C (2.8%/ degree centigrad and offers storage safety between -40Β°C to +85Β°C. Unlock Exclusive Pricing with a Quote for your requirement of 300W 48V Power Supply. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
