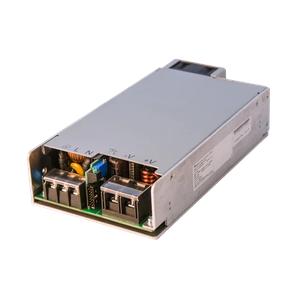

Delta IMA-X600-24 - 25A 24V Power Supply
Technical Specifications of Delta IMA-X600-24 25A 24V Power Supply
| Brand | Delta |
| Product Type | SMPS |
| Product | IMA-X600-24 |
Delta 25A 24V Power Supply IMA-X600-24 Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 25A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 19.2-28.8V |
| Output Power | 600W |
| Hold-up Time | 20 msec nominal |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 80-275Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-300Vdc |
| Input Current | 9A @ 80Vac 5.7A @ 120Vdc |
| Power Factor at 100% load | 0.9 (typical) |
| Cooling System | Fan with variable speed control |
| Unit Weight | 1.1 kg (2.43 lb) |
| Operating Temperature | -20Β°C to +70Β°C |
| Storage Temperature | -40Β°C to +85Β°C |
Obtain a Quote for Delta 25A 24V Power Supply IMA-X600-24 at economical prices. Specifications Overview for IMA-X600-24 reveals 25A Output Current and 24V, Output Voltage 600W Output Power, suitable for diverse applications. It operates on a nominal input voltage of 100-240Vac and supports a frequency range of 47-63Hz. Additionally, it can handle a nominal DC input voltage range of 120-300Vdc, with an input voltage range from 80-275Vac. This power supply features a compact design with an input current of 9A @ 80Vac 5.7A @ 120Vdc making it energy-efficient ensuring easy monitoring. Designed for harsh conditions, it operates reliably within an Operating Temperature of -20Β°C to +70Β°C and offers storage safety between -40Β°C to +85Β°C. Take the First Step with a Quote for your requirement of 25A 24V Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
