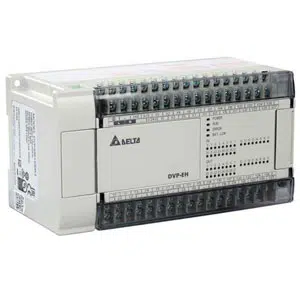

Delta DVP64EH00T3 Programmable Logic Controller
The Delta DVP64EH00T3 Programmable Logic Controller (PLC) provides 32– Digital inputs, 32– Transistor outputs, 32K Steps Program capacity and 100~240VAC Power Supply. This compact PLC delivers stable and accurate control for common industrial machines and automation panels. It supports 24VDC (5 mA) input signals and operates efficiently with a low 80VA power requirement and a built-in 2A/250VAC fuse capacity, it ensures safe and continuous machine performance. The controller is suitable for packaging lines, conveyors, small process systems, and equipment requiring dependable digital input/output performance. Manufactured by Delta, part of the Delta Programmable Logic Controller family within the Delta DVP-EH3 Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP64EH00T3 |
Delta DVP64EH00T3 Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 32– Digital |
| Number of Outputs and Type | 32– Transistor |
| Fuse Capacity | 2A/250VAC |
| Power Consumption | 80VA |
| Program Capacity | 32K Steps |
| Counters | 4 counters of 200 kHz input, 4 axes of 200 kHz output |
| 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) | Spike Voltage Durability |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | OFF→ON: 0.15μs ON→OFF: 3 μs |
| Vibration/shock Resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Delta is a globally respected brand in industrial automation, delivering innovative PLC solutions for reliable and high-performance control systems. Known for engineering excellence and robust product design, Delta PLCs are widely used in industries that demand precision, speed, and durability. The DVP64EH00T3 is part of this trusted product range, offering advanced features in a compact, efficient package. Built to support demanding control applications, the Delta DVP64EH00T3 stands out for its reliability, making it a strong choice for automation engineers seeking quality and stability in their control systems.
The DVP64EH00T3 is a Delta PLC I/O 32/32 model featuring a transistor output method, a program capacity of 32K steps, and power supply input of 100–240VAC. It offers 32 digital inputs and 32 transistor outputs with a 2A/250VAC fuse capacity. Designed for performance, it supports 4 counters of 200 kHz input and 4 axes of 200 kHz output, along with fast response times of 0.15 μs (OFF→ON) and 3 μs (ON→OFF). The unit delivers strong environmental resistance with IP-rated durability, ESD and EFT protection, and compliance with IEC61131-2 standards. It can operate in temperatures from 0ºC to 55ºC and withstand storage from -25ºC to 70ºC. The Delta PLC DVP64EH00T3 ensures stable operation in demanding environments, making it suitable for complex industrial control needs.
With its combination of high-speed processing, multiple I/O points, and rugged design, the DVP64EH00T3 is widely used in manufacturing plants, conveyor automation, packaging machinery, and multi-axis motion control systems. Its flexible configuration allows integration into diverse industrial setups, from small-scale machines to large production lines. Trusted by engineers for stability and efficiency, the DVP64EH00T3 remains a proven choice for applications requiring a dependable Delta PLC I/O 32/32.
