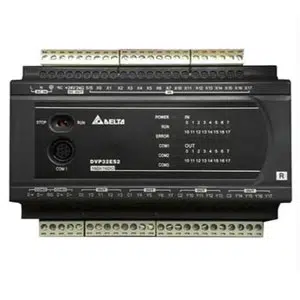

Delta DVP32ES211T Programmable Logic Controller
Delta DVP32ES211T Programmable Logic Controller is designed for compact automation systems where stable control and fast digital output response are required. This Delta PLC features built-in digital inputs and transistor outputs, making it suitable for handling high-speed switching operations in industrial machines. It supports essential program capacity for executing automation logic with consistent performance. Operating on a 24VDC power supply, it integrates easily into modern control panels. Developed under Delta automation solutions, it belongs to the programmable controller category and is part of the DVP-ES2 Series PLC used in machine-level applications.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP32ES211T |
Delta DVP32ES211T Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | 16 - Digital |
| Number of Outputs and Type | 16- Transistor |
| Fuse Capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 1.8W |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | OFF ON: 2.5μs ON→OFF: 5 μs |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP32ES211T is built to deliver stable control performance in systems where reliable digital input and fast output switching are essential. Its transistor outputs support quick response, making it suitable for applications that require precise control timing. The compact structure allows easy installation within control panels while maintaining efficient system layout.
In industrial applications, this PLC is commonly used in packaging machines, conveyor systems, and small automation setups where consistent control logic is required. It enables operators and system integrators to manage input signals, control outputs, and execute programmed sequences effectively. The design supports continuous operation with low power consumption, helping maintain energy-efficient performance.
From a system integration perspective, the Delta DVP32ES211T fits automation environments that require a compact and dependable control unit with fast output response. It supports long-term operation under industrial conditions while maintaining stable execution of control tasks. This makes it a practical choice for applications that require efficient automation, flexible integration, and reliable performance.
