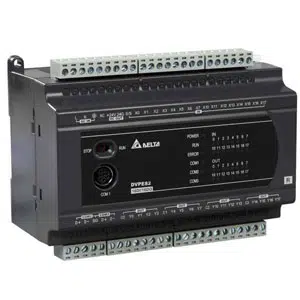

Delta DVP24ES200R – DVP 24ES PLC Controller
The Delta DVP24ES200R Programmable Logic Controller (PLC) is a DVP 24ES standard controller with Ethernet communication, featuring 16 digital inputs and 8 relay outputs for flexible machine control. It operates on a 100–240VAC power supply with a built-in 2A/250VAC fuse, supporting 16k steps program capacity and 10k words data registers. Manufactured by Delta, this PLC belongs to the Delta Programmable Logic Controller family within the Delta DVP-ES2 Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP24ES200R |
Delta DVP24ES200R Programmable Logic Controller – Technical Specifications
| Specification | Value |
|---|---|
| Type | CPU |
| Output Type | Relay |
| Number of Inputs and Type | 16 – Digital |
| Number of Outputs and Type | 8 – Relay |
| Power Supply Voltage | 100~240VAC |
| Fuse Capacity | 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Data register | 10k words |
| Program capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air DischargeEFT: Power Line, 2 kVDigital I/O: 1 kVAnalog & Communication I/O |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
| Earth | The diameter of the grounding wire shall not be shorter than that of the power supply cable.(When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature)Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity)5%~95% (humidity); pollution degree 2 |
| Response Time | 10ms |
| Max. Frequency | 1Hz*2 |
The Delta DVP24ES200R PLC is a reliable controller from the DVP 24ES platform, developed for stable digital control in industrial automation systems. This Delta DVP 24ES model provides 16 digital inputs, 8 relay outputs, and operates on a wide 100–240VAC input range, supporting consistent control logic for standard automation requirements. Ethernet communication allows easy integration into networked control architectures.
In industrial applications, the PLC Delta DVP 24ES configuration is widely used in packaging machines, conveyors, material handling systems, and general-purpose automation panels. The controller ensures dependable relay switching, stable I/O performance, and smooth communication between field devices and control networks. Its balanced I/O capacity makes it suitable for compact machines and distributed control systems.
The Delta DVP 24ES PLC is engineered for long-term industrial operation with strong noise immunity, 1500VAC isolation durability, and a fast 10 ms response time. As part of the Delta PLC DVP-ES2 series, it supports continuous duty cycles, electrical stability, and system compatibility. Engineers selecting Delta DVP 24ES controllers value their proven reliability, Ethernet readiness, and suitability for demanding industrial environments.
