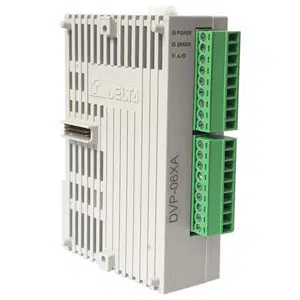

Delta DVP06XA-S2 Analog Input Output Module
The Delta DVP06XA-S2 Programmable Logic Controller (PLC) is a mixed-signal Delta Analog Input / Output Module designed for precise Analog measurement and control in industrial automation systems. This Delta PLC Analog Input / Output Module provides 6 total channels comprising 4 Analog inputs supporting -10V to +10V and -20mA to +20mA, along with 2 Analog outputs offering 0–10V and 0–20mA control. Featuring 12-bit resolution, differential input design, and a built-in RS-485 interface, it ensures stable signal handling and communication. Manufactured by Delta, this Module belongs to the Delta Programmable Logic Controller family within the Delta DVP-S Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP06XA-S2 |
Delta DVP06XA-S2 Analog Input/Output Module - Technical Specifications
| Specification | Value |
|---|---|
| Built-in | RS-485 interface |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | 12-bit |
| Analog I/O Modules | 4 points of Analog / 2 points of Analog |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 4W |
| Voltage input/output | input voltage (-10V~+10V)/ output voltage (0V~+10V) |
| Current input/output | current (-20 mA~+20 mA) input/ current (0 mA~+20 mA) output |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 3ms |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP06XA-S2 is a compact Delta PLC Analog Input / Output Module developed for applications requiring both Analog sensing and Analog control. As a Delta Analog Input / Output Module, it delivers 4 Analog input channels and 2 Analog output channels with 12-bit input and output resolution, enabling accurate data acquisition and proportional signal control in PLC-based automation systems.
In industrial applications, the Delta DVP06XA-S2 is widely used in process control, machine automation, and monitoring systems where mixed Analog signals are required. The Module supports stable control of sensors, transmitters, actuators, and variable devices in packaging machines, manufacturing lines, and energy management panels. Its differential input structure improves noise resistance, ensuring consistent performance in electrically demanding environments.
The Delta PLC Analog Input / Output Module integrates seamlessly with DVP-S series PLC architectures and follows Delta electrical design standards. The Delta DVP06XA-S2 supports long-term industrial operation through reliable signal accuracy, communication stability, and defined power characteristics. Engineers selecting a Delta Analog Input / Output Module recognize this model for its balanced channel configuration, dependable operation, and compatibility with industrial automation systems used across India.
