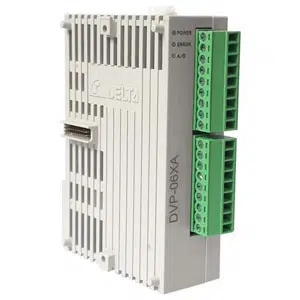

Delta DVP06XA-S PLC Analog Input Output Module
Delta DVP06XA-S Programmable Logic Controller is a modular analog input and output module designed for accurate signal handling in industrial automation systems. It provides 4 analog input channels supporting voltage and current signals, along with 2 analog output channels for controlled signal transmission. With 12-bit resolution and stable 24 VDC operation, it ensures precise measurement and consistent control performance. The built-in RS-485 interface supports reliable communication in automation networks. Manufactured by Delta automation, it is part of the PLC control systems range within the DVP series modules used in industrial applications.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP06XA-S |
Delta DVP06XA-S Modular PLC Analog Input Output Module - Technical Specifications
| Specification | Value |
|---|---|
| Built-in | RS-485 interface |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | 12-bit |
| Analog I/O Modules | 4 points of Analog/ 2 points of Analog |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2W |
| Voltage input/output | input voltage (-10 V ~ +10 V)/ output voltage (0 V ~ +10 V) |
| Current input/output | current (-20 mA ~ +20 mA)/ current (0 mA ~ +20 mA) input |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP06XA-S is a modular PLC analog input and output module developed to extend the analog processing capability of Delta PLC systems. It supports 4 analog inputs and 2 analog outputs with 12-bit resolution, enabling accurate signal conversion in industrial control environments. Operating on a 24 VDC supply, the module integrates efficiently within DVP series architectures while supporting stable system expansion and reliable automation performance.
Industrial automation systems use this module in applications that require precise analog monitoring and signal handling. Common implementations include temperature control, speed regulation, pressure sensing, and flow measurement where consistent analog conversion is essential for process stability. Integrated RS-485 communication supports dependable data exchange across connected automation devices, helping maintain reliable operation in continuous industrial processes.
Designed for long-term industrial operation, the Delta DVP06XA-S maintains stable response characteristics under electrically demanding conditions. Resistance to electrical noise and consistent signal handling improve operational reliability across automation panels and process systems. This connection between module structure, analog capability, and system integration makes the DVP06XA-S suitable for applications requiring accurate control and dependable analog performance.
