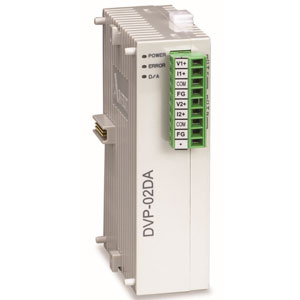

DVP02DA-S - Delta PLC Analog I/O Module

DVP02DA-S is a Delta PLC Analog I/O Module featuring 2 analog outputs for voltage (0–10V) and current (0–20 mA), 12-bit resolution, built-in RS-485, and 24VDC power. Designed for precision control, it offers high noise immunity, IP-rated durability, and reliable performance in industrial automation systems.
Spec | Value |
---|---|
Brand | Delta |
Product Type | PLC |
Product | DVP02DA-S |
Delta PLC Analog I/O Module DVP02DA-S Technical Specifications:
Specification | Value |
---|---|
Built-in | RS-485 interface |
Power Supply Voltage | 24VDC (-15%~20%) |
Resolution | 12-bit |
Analog I/O Modules | 2 points of analog |
Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
Power Consumption | 2W |
Voltage input/output | output voltage (0V~+10V)/ |
Current input/output | Ouput current (0 mA~+20 mA) |
Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
Response Time | 3ms |
Input Signal Voltage | 24VDC ±10% (5 mA) |
Delta is a global leader in industrial automation, providing innovative and reliable control solutions for a wide range of applications. Known for its quality engineering, advanced design, and dependable performance, Delta products are trusted by system integrators and engineers worldwide. The DVP02DA-S is a high-performance Delta PLC Analog I/O Module designed to meet the demands of modern automation systems. With its precision output, robust communication capabilities, and durable construction, the Delta DVP02DA-S reflects Delta’s commitment to delivering automation products that ensure efficiency, accuracy, and long-term operational stability.
The DVP02DA-S is equipped with 2 points of analog output, supporting both voltage output (0V~+10V) and current output (0 mA~+20 mA) with a 12-bit resolution for precise control. It operates on a 24VDC (-15%~20%) power supply and includes a built-in RS-485 interface for seamless communication in industrial networks. The module’s protection features include spike voltage durability up to 1500VAC, insulation impedance greater than 5 MΩ, and high noise immunity to ESD, EFT, and RS interference. Its compact design offers a power consumption of just 2W, a response time of 3ms, and is built to withstand temperatures from 0ºC to 55ºC during operation. The Delta PLC DVP02DA-S is engineered for stable and efficient analog output performance, even in demanding environments, making it a dependable choice for precision control applications.
Thanks to its robust build and reliable output accuracy, the DVP02DA-S is used across diverse industrial sectors such as manufacturing automation, process control, and machine integration. It is suitable for controlling actuators, drives, and process parameters that require fine-tuned analog signals. With its built-in communication interface, it integrates seamlessly into both existing and new PLC systems, enhancing operational flexibility and system performance. For engineers seeking a compact yet powerful module for precision analog control, the DVP02DA-S remains one of the most trusted Delta PLC Analog I/O Module options available.
