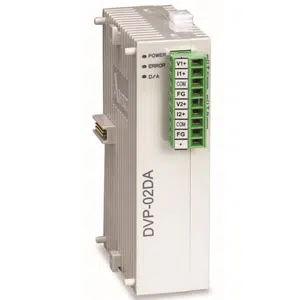

Delta DVP02DA-S PLC Analog Output Module
The Delta DVP02DA-S PLC Analog output Module provides two-channel Analog outputs with 12-bit resolution for automation control applications. Designed as a compact Delta PLC Analog Module, it supports 0–10V voltage and 0–20mA current outputs with stable signal accuracy and includes a built-in RS-485 interface for system communication. Manufactured by Delta, this Module belongs to the Delta Programmable Logic Controller range and is part of the Delta DVP-S Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP02DA-S |
Delta DVP02DA-S Programmable Logic Controller Analog Output Module – Technical Specifications
| Specification | Value |
|---|---|
| Built-in | RS-485 interface |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | 12-bit |
| Analog I/O Modules | 2 points of Analog |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2W |
| Voltage input/output | output voltage (0V~+10V)/ |
| Current input/output | Ouput current (0 mA~+20 mA) |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 3ms |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP02DA-S PLC Analog Output Module is a dedicated Delta PLC Analog Module developed for precise Analog signal generation in PLC-based control systems. Identified as a Delta Analog Output Module, it provides 2 Analog output channels with 12-bit resolution, supporting standard voltage and current signals commonly used in industrial automation.
In industrial applications, the Delta DVP02DA-S Delta Analog PLC Module is used to control variable frequency drives, proportional valves, actuators, and process equipment. Its stable output performance supports smooth speed regulation, proportional control, and consistent signal transmission in packaging machines, assembly lines, and automation panels where accurate Analog control is required.
The Delta DVP02DA-S integrates directly with DVP-S series PLC architectures and follows Delta electrical and communication standards. As a Delta PLC Expansion Module and Delta Analog Module, it supports reliable long-term operation through defined output resolution, stable signal behavior, and compatibility with Delta PLC systems widely used across Indian industrial automation installations.
