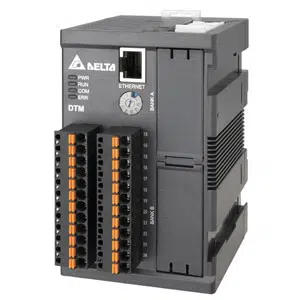

DTM-BDV - Delta plug-in output cassette Temperature Controller
Technical Specifications of DTM-BDV Delta plug-in output cassette Temperature Controller
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTM-BDV |
Delta plug-in output cassette Temperature Controller DTM-BDV Technical Specifications:
| Specification | Value |
|---|---|
| Channel Number | 4-channel |
| Input Power Supply | DC 24 V |
| Operating Voltage Range | 90% ~ 110% rated voltage |
| Power Consumption (Max.) | 5 W |
| Sampling Rate | 0.1 sec. / all 8 sets of input |
| Control Methods | PID, programmable PID, ON / OFF, manual |
| Communication Protocol | RS-485 DIP Switch: supports the Modbus protocol with RTU / ASCII communication format Ethernet RJ45 Port: support Modbus TCP and Ethernet/IP, compliant with IEEE802.3, IEEE802.3u Mini USB Port: supports USB2.0 communication standard |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m/sΒ² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m/sΒ², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0Β°C ~ 50Β°C |
| Storage Temperature | 20Β°C ~ 65Β°C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35% ~ 85% RH (non-condensing) |
| Dimensions | 2.5 (W) Γ 4.8 (H) Γ 7.7 (D) cm |
Reach Us by Email for Delta plug-in output cassette Temperature Controller, DTM-BDV at Discounted Rates. Key Technical Features of DTM-BDV are 4-channel, DC 24 V, 90% ~ 110% rated voltage, 5 W. Additionally, it provides 0.1 sec. / all 8 sets of input, PID, programmable PID, ON / OFF, manual, 10 ~ 55 Hz, 10 m/sΒ² for 10 mins in X, Y, Z directions
. Navigate Your Needs with a Quote for your requirement of Delta plug-in output cassette Temperature Controller. Our pricing and support are unrivaled, especially when compared to other Competitors.
