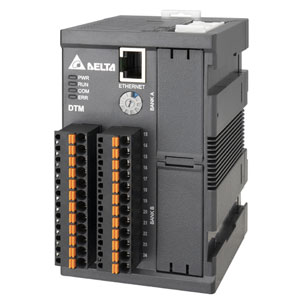

DTM-BDC: Delta 4~20 mA Output Extension Cassette
Technical Specifications of Delta 4~20 mA Output Extension Cassette DTM-BDC:
| Spec | Value |
|---|---|
| Input Power Supply | DC 24 V |
| Operating Voltage range | 90% ~ 110% rated voltage |
| Power Consumption | 5 W |
| Sampling Rate | 0.1 sec. / all 8 sets of input |
Delta 4~20 mA Output Extension Cassette DTM-BDC Technical Specifications:
| Specification | Value |
|---|---|
| Channel Number | 4-channel |
| Input Power Supply | DC 24 V |
| Operating Voltage Range | 90% ~ 110% rated voltage |
| Power Consumption (Max.) | 5 W |
| Sampling Rate | 0.1 sec. / all 8 sets of input |
| Control Methods | PID, programmable PID, ON / OFF, manual |
| Communication Protocol | RS-485 DIP Switch: supports the Modbus protocol with RTU / ASCII communication format Ethernet RJ45 Port: support Modbus TCP and Ethernet/IP, compliant with IEEE802.3, IEEE802.3u Mini USB Port: supports USB2.0 communication standard |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m/s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m/s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0°C ~ 50°C |
| Storage Temperature | 20°C ~ 65°C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35% ~ 85% RH (non-condensing) |
| Dimensions | 2.5 (W) × 4.8 (H) × 7.7 (D) cm |
| Input/Output |
IndMALL Dealing in Delta 4~20 mA Output Extension Cassette, DTM-BDC at the best rates. Operational Specifications for DTM-BDC are 4-channel, DC 24 V, 90% ~ 110% rated voltage, 0.1 sec. / all 8 sets of input. And It Delivers 5 W, PID, programmable PID, ON / OFF, manual, 10 ~ 55 Hz, 10 m/s² for 10 mins in X, Y, Z directions
. Unlock Exclusive Pricing with a Quote for your requirement of Delta 4~20 mA Output Extension Cassette. Experience the advantage of our pricing and support against other Traders.
