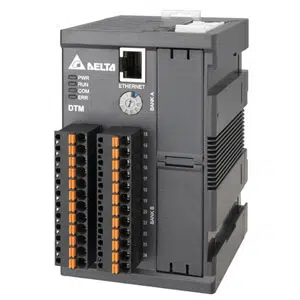

Delta DTM-BDL 0~10V Cassette Output Temperature Controller
Delta DTM-BDL is a 4-channel 0~10V output temperature controller designed for accurate industrial process control and stable automation performance. This Delta 0~10V Cassette Output Temperature Controller supports DC 24V operation with programmable PID, ON/OFF, and manual control modes for flexible industrial applications. The module supports Modbus RTU/ASCII, Modbus TCP, Ethernet/IP, and USB2.0 communication standards for reliable industrial connectivity. Manufactured by Delta, the DTM-BDL belongs to the Delta Temperature Controller category used across industrial process control and automation systems. For more details and related models, see the Delta DTM Series Temperature Controllers.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTM-BDL |
Delta 0~10V, Cassette Output Temperature Controller DTM-BDL Technical Specifications:
| Specification | Value |
|---|---|
| Channel Number | 4-channel, 0~10 V output |
| Input Power Supply | DC 24 V |
| Operating Voltage Range | 90% ~ 110% rated voltage |
| Power Consumption (Max.) | 5 W |
| Sampling Rate | 0.1 sec. / all 8 sets of input |
| Control Methods | PID, programmable PID, ON / OFF, manual |
| Communication Protocol | RS-485 DIP Switch: supports the Modbus protocol with RTU / ASCII communication format Ethernet RJ45 Port: support Modbus TCP and Ethernet/IP, compliant with IEEE802.3, IEEE802.3u Mini USB Port: supports USB2.0 communication standard |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m/s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m/s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0°C ~ 50°C |
| Storage Temperature | 20°C ~ 65°C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35% ~ 85% RH (non-condensing) |
| Dimensions | 2.5 (W) × 4.8 (H) × 7.7 (D) cm |
The DELTA DTM-BDL cassette output temperature controller is commonly used in industrial automation systems requiring stable 0~10V signal transmission and dependable process regulation. Applications involving industrial ovens, packaging systems, process machinery, furnaces, and automation equipment benefit from accurate analog voltage output management and stable control capability. Its 4-channel output structure supports efficient industrial signal control across demanding automation environments.
Industrial systems integrating the DTM-BDL benefit from stable communication performance and flexible operational configuration. The controller supports RS-485, Ethernet RJ45, and Mini USB connectivity for seamless industrial integration. Its fast 0.1-second sampling performance and programmable PID functionality help maintain process consistency while supporting reliable industrial automation requirements.
For industries searching for a Delta 0~10V Output Temperature Controller, the DTM-BDL provides dependable analog voltage control capability, flexible communication support, and stable automation performance. The module supports both new industrial automation installations and replacement requirements involving precision process management applications. Within the Delta automation category, it remains a practical solution for industrial environments requiring reliable 0~10V output performance.
