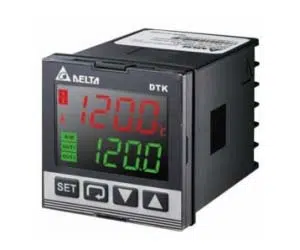

DTK4848V02: Delta 1/16 DIN W48×H48mm Temperature Controller
Technical Specifications of DTK4848V02 Delta 1/16 DIN W48×H48mm Temperature Controller:
Spec | Value |
---|---|
Panel Size (W×H) | 4848 1/16 DIN W48 × H48mm |
Output options | V: Voltage pulse output 12VDC +/-15% |
Alarm option | 2 alarm output |
Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
Delta 1/16 DIN W48×H48mm Temperature Controller DTK4848V02 Technical Specifications:
Specification | Value |
---|---|
Panel Size (W×H) | 4848 1/16 DIN W48 × H48mm |
Output options | V: Voltage pulse output 12VDC +/-15% |
Communication option | 0: None |
Alarm option | 2 alarm output |
Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
Power Consumption | 5VA max. |
Display Method | LCD display.Process value (PV): Red color, Set point (SV): Green color |
Control Mode | PID, manual, and ON/OFF |
Sensor Type | LCD display.Process value (PV): Red color, Set point (SV): Green color Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 |
Control Output | Relay output: Max. load 250VAC, 5A resistive load Voltage pulse output: DC 12V, Max. output current 40 mA Current output: DC 4 ~ 20 mA output (Load resistance: Max. 600Ω) |
Alarm Output Type | Relay output: Max. load 250VAC, 3A resistive load |
Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
Sampling Rate | Thermocouple or platinum resistor: 0.1 sec |
Vibration Resistance | 10 to 55 Hz, 10 m/s2 for 10 min, each in X, Y, and Z directions |
Shock Resistance | Max. 300 m/s2, 3 times in each of 3 axes, 6 directions |
Ambient Temperature | 0°C ~ +50°C |
Storage Temperature | -20°C ~ +65°C |
Altitude | Max. 2000 m |
Relative Humidity | 35% ~ 80% RH (non-condensing) |
Ask for the Pricing of Delta 1/16 DIN W48×H48mm Temperature Controller, DTK4848V02 at unbeatable prices. Detailed Specifications of DTK4848V02 feature 4848 1/16 DIN W48 × H48mm, 2 alarm output, 0: None, V: Voltage pulse output 12VDC +/-15%. Moreover, it features AC 100 ~ 240V +/-10%, 50/60 Hz, 5VA max., LCD display.Process value (PV): Red color, Set point (SV): Green color. Now's the Time to Secure a Quote for your requirement of Delta 1/16 DIN W48×H48mm Temperature Controller. We're committed to offering more favorable pricing and more responsive support than other Traders.
