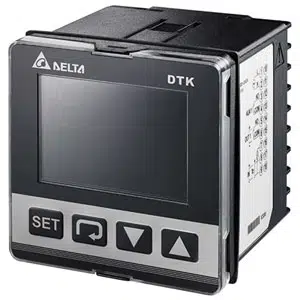

DTK7272R01: Delta Panel-Mount PID temperature Controller
Technical Specifications of DTK7272R01 Delta Panel-Mount PID temperature Controller:
| Spec | Value |
|---|---|
| Panel Size (W×H) | 7272 W72 × H72mm |
| Output options | Relay output, 250 VAC, 5A |
| Alarm option | 1 alarm output |
| Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
Delta Panel-Mount PID temperature Controller DTK7272R01 Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 7272 W72 × H72mm |
| Output options | Relay output, 250 VAC, 5A |
| Communication option | 0: None |
| Alarm option | 1 alarm output |
| Input Voltage | AC 100 ~ 240V +/-10%, 50/60 Hz |
| Power Consumption | 5VA max. |
| Display Method | LCD display.Process value (PV): Red color, Set point (SV): Green color |
| Control Mode | PID, manual, and ON/OFF |
| Sensor Type | LCD display.Process value (PV): Red color, Set point (SV): Green color Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 |
| Control Output | Relay output: Max. load 250VAC, 5A resistive load Voltage pulse output: DC 12V, Max. output current 40 mA Current output: DC 4 ~ 20 mA output (Load resistance: Max. 600Ω) |
| Alarm Output Type | Relay output: Max. load 250VAC, 3A resistive load |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Thermocouple or platinum resistor: 0.1 sec |
| Vibration Resistance | 10 to 55 Hz, 10 m/s2 for 10 min, each in X, Y, and Z directions |
| Shock Resistance | Max. 300 m/s2, 3 times in each of 3 axes, 6 directions |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Altitude | Max. 2000 m |
| Relative Humidity | 35% ~ 80% RH (non-condensing) |
Send Your Inquiry for Delta Panel-Mount PID temperature Controller, DTK7272R01 with cost-effective solutions. Essential Technical Specs of DTK7272R01 cover 7272 W72 × H72mm, Relay output, 250 VAC, 5A, 0: None, 1 alarm output. It also delivers AC 100 ~ 240V +/-10%, 50/60 Hz, 5VA max., LCD display.Process value (PV): Red color, Set point (SV): Green color. Capture the Best Deal with a Quote for your requirement of Delta Panel-Mount PID temperature Controller. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
