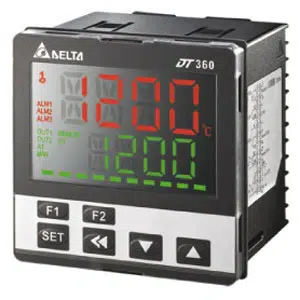

DT360VA-0200 - Delta 1/4 DIN Temp Controller Pulse O/P
The Delta DT360VA-0200 Temperature Controller is a panel mounting controller designed for industrial process and temperature control applications requiring pulse output operation and stable thermal regulation. It features a large 96 × 96 mm (1/4 DIN) panel size with an LCD display showing process value and set point in different colors for clear monitoring. The controller supports PID, PID program control, Ramp/Soak control, FUZZY control, self-tuning, manual, and ON/OFF operation modes for flexible industrial automation performance. Manufactured by Delta automation, it belongs to the temperature control range and is part of the DT3 controller series used in industrial environments.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DT360VA-0200 |
Delta 1/4 DIN Temp Controller Pulse O/P DT360VA-0200 Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 9696 1/4 DIN W96 × H96mm |
| Input Voltage | 80 ~ 260Vac 50/60Hz; 24Vac 50/60Hz ±10%; 24 Vdc ±10% |
| Power Consumption | 8VA max. |
| Display Method | LCD display. Process value (PV): Yellow color, Set point (SV): Green color |
| Alarm Output Type | Relay output: Max. load 250Vac, 3A resistive load |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Analog input: 0.1 sec/ per scan; Thermocouple or Platinum RTD: 0.1 sec/per scan |
| Control Mode | PID, PID program control (Ramp/Soak control), FUZZY, Self-tuning, Manual and On/FF |
| Sensor Type | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK (Thermal couple measuring location are not intended to be directly connected to the MAINS supply.) 3-wire Platinum RTD: Pt100, JPt100 Resistance: Cu50, Ni120 Analog input: 0 ~ 5Vdc, 0 ~ 10Vdc, 0 ~ 20mA, 4 ~ 20mA, 0 ~ 50mVdc |
| Control Output | Relay output: Max. load 250Vac, 5A resistive load Voltage pulse output: 12Vdc, Max. output current 40mA Current output: DC 4 ~ 20m A output (Load resistance: Max. 500Ω) Analog voltage output: 0 ~ 10Vdc |
| Vibration Resistance | 10 to 55Hz, 10m/s2 for 10min, each in X, Y and Z directions |
| Shock Resistance | Max. 300m/ s2 , 3 times in each 3 axes, 6 directions |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Altitude | Max. 2000m |
| Relative Humidity | 35% ~ 80% RH（non-condensing） |
| Panel protection level | IP66 |
The Delta DT360VA-0200 temperature controller is built for stable and precise thermal regulation in industrial systems requiring dependable pulse output control. Its panel mounting structure supports organized installation within industrial automation panels while maintaining clear visibility through the LCD display. The controller also supports selectable decimal point positioning, enabling flexible process monitoring across different temperature control applications.
In operation, the DT360VA-0200 provides stable process response and dependable control performance through advanced PID-based control functionality. It supports relay output up to 250 VAC, 3 A resistive load while maintaining accurate process regulation during continuous industrial operation. The controller also supports multiple voltage input options including 80–260 VAC, 24 VAC, and 24 VDC, improving installation flexibility across industrial environments.
From an application perspective, the Delta DT360VA-0200 Temperature Controller aligns with systems requiring reliable temperature monitoring, pulse output control, and stable operational performance. Its combination of PID program control, Ramp/Soak capability, self-tuning operation, and large display visibility makes it suitable for industrial heating systems, packaging machinery, process automation panels, and thermal control applications. This balance of monitoring capability and control flexibility makes it a practical solution within the Delta DT3 controller series.
