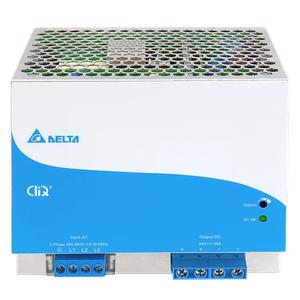

Delta DRP024V480W3BA 24V 20A DIN Rail Power Supply
Delta DRP024V480W3BA is a 20A 24V DIN Rail Power Supply engineered for industrial automation, high-power control panels, and systems requiring reliable 24V DC output. Supporting a nominal input voltage of 3 x 400–500Vac with a wide input range of 3 x 320–600Vac, this unit delivers stable voltage for PLCs, relays, sensors, and other industrial devices. Its DIN rail mounting ensures structured installation in industrial enclosures. Manufactured by Delta Industrial Automation, this model is part of the Delta Power Supply Solutions category, and belongs to the Delta DIN Rail CliQ II Series, providing dependable 480W DC power for industrial automation and process control systems.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP024V480W3BA |
Delta 480W 24V DIN Rail Power Supply DRP024V480W3BA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 20A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Power | 480W |
| Line Regulation | < 0.5% (@ 3 x 320-600Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 3 x 320-600Vac input, 0-100% load) |
| PARD | < 150mVpp |
| Start-up Time | < 1,000ms @ nominal input (100% load) |
| Hold-up Time | > 20ms @ 3 x 400Vac & 3 x 500Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 3 x 320-600Vac input, 10-90% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 10,000µF Max |
| Rise Time | < 100ms @ nominal input (100% load) |
| Nominal Input Voltage | 3 x 400-500Vac |
| Input Voltage Range | 3 x 320-600Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 450-800Vdc |
| Input Current | < 1.00A @ 3 x 400Vac < 0.75A @ 3 x 500Vac |
| Efficiency at 100% load | > 91.0% @ 3 x 400Vac & 3 x 500Vac |
| Inrush Current | < 50A @ 3 x 400Vac & 3 x 500Vac |
| Power Factor at 100% load | > 0.95 @ 3 x 400Vac, > 0.94 @ 3 x 500Vac |
| Leakage Current | < 3.5mA @ 3 x 600Vac |
| Power Dissipation | 0% load: < 5.0W @ 3 x 400Vac & 3 x 500Vac 100% load: < 47.0W @ 3 x 400Vac & 3 x 500Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 4 Pins (Rated 600V/35A) |
| Output Terminal | 4 Pins (Rated 300V/30A) |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-8 Output: AWG 12-10 |
| Unit Weight | 1.35 kg (2.98 lb) |
| Operating Temperature | -25°C to +80°C (Cold Start at -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical: > 50°C de-rate power by 2.5% / °C, > 70°C de-rate power by 5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G (300m/S for a duration of 18ms, 3 times per direction, 6 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction |
| Operating Altitude | 0 to 2,500 Meters (8,200 ft.) for ITE application 0 to 2,000 Meters (6,560 ft.) for Industrial application |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
The Delta DRP024V480W3BA 480W 24V DIN Rail Power Supply is ideal for high-demand industrial applications requiring stable 24V DC output at 20A. Designed for continuous industrial operation, it delivers precise line and load regulation, minimal ripple, and efficient energy conversion across full load conditions. The unit features secure input and output terminals rated 600V/35A and 300V/30A, allowing reliable connections for heavy-duty industrial devices. Its compact DIN rail form factor enables organized installation in control panels, improving access and reducing clutter. Operating across a wide temperature range of -25°C to +80°C and storing safely from -40°C to +85°C, it withstands harsh environmental conditions. The convection-cooled design ensures quiet operation while the three-phase input capability supports stable performance even in demanding industrial environments. Suitable for powering PLCs, relays, sensors, motors, and other critical control devices, it ensures consistent and reliable DC output for process automation. IndMALL provides competitive pricing, instant quotations, and responsive support, delivering better value and service than other suppliers. The Delta DRP024V480W3BA combines industrial-grade performance, durability, and efficiency, making it a dependable solution for DIN rail-mounted automation and control systems, enhancing uptime, productivity, and operational reliability.
