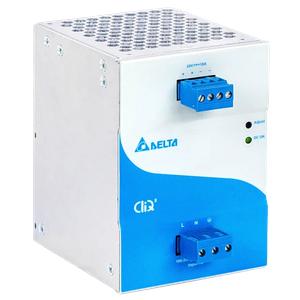

Delta DRP024V240W1BN 10A 240W 24V DIN Rail Power Supply
Delta DRP024V240W1BN 10A 240W 24V DIN Rail Power Supply delivers robust and stable DC power for industrial automation systems, control panels, and embedded electronics requiring consistent voltage. Operating with a nominal input voltage of 100–240Vac and a broad input range of 85–264Vac, it ensures stable operation across diverse industrial environments. Its DIN rail mounting design allows organized and compact installation in control cabinets. Manufactured by Delta industrial automation, this model is part of the Delta power supply solutions category, providing dependable 24V output for PLCs, sensors, relays, and other control devices in industrial systems. Learn more about the Delta DIN Rail CliQ-II Series for high-efficiency applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP024V240W1BN |
Delta 10A 240W DIN Rail Power Supply DRP024V240W1BN Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 10A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 240W |
| Line Regulation | < 0.5% (@ 85-264Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 85-264Vac input, 0-100% load) |
| PARD | < 150mVpp |
| Start-up Time | < 1,000ms @ nominal input (100% load) |
| Hold-up Time | > 20ms @ 115Vac & 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 10,000µF Max |
| Rise Time | < 100ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | < 2.50A @ 115Vac, < 1.30A @ 230Vac |
| Efficiency at 100% load | > 90.0% @ 115Vac, > 92.0% @ 230Vac |
| Inrush Current | < 35A @ 115Vac & 230Vac |
| Power Factor at 100% load | > 0.96 @ 115Vac > 0.90 @ 230Vac |
| Leakage Current | < 1mA @ 240Vac |
| Power Dissipation | 0% load: < 5.7W @ 115Vac, < 4.8W @ 230Vac 100% load: < 26.6W @ 115Vac, < 20.8W @ 230Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 3 Pins (Rated 300V/15A) |
| Output Terminal | 4 Pins (Rated 300V/15A) |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input / Output: AWG 16-12 |
| Unit Weight | 1.10 kg (2.43 lb) |
| Operating Temperature | -25°C to +80°C (Cold Start at -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical: > 50°C de-rate power by 2.5% / °C Horizontal: > 40°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total |
| Vibration (Non-Operating) | IEC60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction |
| Operating Altitude | 0 to 2,500 Meters (8,200 ft) |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
The Delta DRP024V240W1BN 10A 240W 24V DIN Rail Power Supply is designed for industrial automation panels, PLCs, and control circuits that require reliable 24V DC output. With a 10A current rating and 240W power capacity, it maintains consistent voltage with low ripple and precise line/load regulation. Its compact DIN rail form factor enables neat installation and simplifies wiring in industrial enclosures.
Equipped with secure input and output terminals (3 Pins rated 300V/15A for input and 4 Pins rated 300V/15A for output), this power supply allows fast, dependable connections. It operates effectively in extreme environments, from -25°C to +80°C, with cold start capability at -40°C. Storage temperature ranges from -40°C to +85°C, guaranteeing long-term durability and stable performance for continuous industrial use.
Engineers, integrators, and industrial operators can rely on the Delta DRP024V240W1BN 10A 240W 24V DIN Rail Power Supply for high-efficiency, reliable DC power. IndMALL offers competitive pricing, instant quotes, and responsive support, providing superior value over other suppliers. Its combination of electrical stability, thermal resilience, and compact design ensures uninterrupted operation for PLCs, relays, sensors, and control systems, reducing downtime and enhancing productivity in industrial automation applications.
