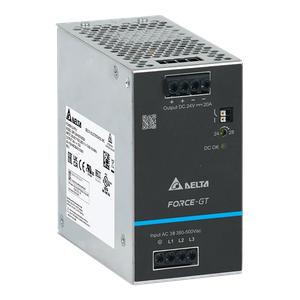

Delta DRF-24V480W3GBA: 24V DIN Rail Power Supply
Technical Specifications of Delta 24V DIN Rail Power Supply DRF-24V480W3GBA:
| Output Current | 20A |
| Output Voltage | 24V |
| Output Power | 480W |
| Input Current | < 0.85 A @ 3 x 400 Vac, < 0.73 A @ 3 x 500 Vac |
Delta 24V DIN Rail Power Supply DRF-24V480W3GBA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 20A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Power | 480W |
| Line Regulation | < 40 mV (@ 3 x 320-575 Vac input, 100% load) |
| Load Regulation | < 200 mV (@ 3 x 320-575 Vac input, 0-100% load) |
| PARD | < 150 mVpp |
| Start-up Time | 1,000 ms typ. @ nominal input (100% load) |
| Hold-up Time | 20 ms typ. @ 3 x 400 Vac & 500 Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 3 x 320-575 Vac input, 1.5-100% load (Slew Rate: 0.1 A/μs, 50% duty cycle @ 5 Hz to 1 kHz) |
| Start-up with Capacitive Loads | 20,000 µF Max |
| Rise Time | 100 ms typ. @ nominal input (100% load) |
| Nominal Input Voltage | 3 x 380-500 Vac |
| Input Voltage Range | 3 x 320-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 450-800 Vdc |
| Input Current | < 0.85 A @ 3 x 400 Vac, < 0.73 A @ 3 x 500 Vac |
| Input Power (Standby Mode) | - |
| Efficiency at 100% load | 94.0% typ. @ 3 x 400 Vac & 500 Vac |
| Inrush Current | 35 A typ. @ 3 x 400 Vac & 3 x 500 Vac |
| Power Factor at 100% load | > 0.90 @ 3 x 400 Vac, > 0.88 @ 3 x 500 Vac |
| Leakage Current | < 3.5 mA @ 3 x 500 Vac |
| Case Chassis / Cover | Aluminun |
| Indicator | Green LED DC OK |
| Cooling System | Convection |
| Input Terminal | 4 Pins (Rated 600 V / 30 A) |
| Output Terminal | 4 Pins (Rated 600 V / 30 A) |
| Signal Terminal | 2 Pins (Rated 300 V / 12 A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-10 Output: AWG 12-10 DC OK: AWG 20-16 |
| Unit Weight | 1.20 kg (2.65 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500 Hz; 3G peak; 60 min per axis for all X, Y, Z directions |
| Operating Temperature | 3-Phase -25°C to +70°C (-40°C Cold Start) 2-Phase -25°C to +60°C (-40°C Cold Start) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical Mounting: > 55°C de-rate power by 3.33% / °C Horizontal Mounting: > 25°C de-rate power by 2.5% / °C Input Voltage: 2-Phase 2 x 340-575 Vac de-rate power to 80% |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction |
| Operating Altitude | OVC III 0 to 2,500 Meters (8,200 ft.) OVC II 2,500 to 6,000 Meters (19,680 ft.) 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | IEC/EN 62477-1, EN 60204-1, IEC 62103 OVC III: 0 to 2,500 Meters (8,200 ft.) OVC II: 2,500 to 6,000 Meters (19,680 ft.) IEC/EN 62368-1, IEC/EN 61010 OVC II: 0 to 5,000 Meters (16,400 ft.) |
IndMALL Automation Dealing offers Delta 24V DIN Rail Power Supply DRF-24V480W3GBA at unbeatable prices. The Main Technical Parameters of DRF-24V480W3GBA are 20A Output Current, 24V Output Voltage, 480W Output Power at competitive prices. It operates with a nominal input voltage of 3 x 380-500 Vac and supports an input voltage range of 3 x 320-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase). The power supply covers a nominal input frequency of 50-60 Hz, with a broader input frequency range of 47-63Hz. For DC input, it accepts a range from 450-800 Vdc. With an input current of < 0.85 A @ 3 x 400 Vac, < 0.73 A @ 3 x 500 Vac, it ensures efficient performance. The unit features a Green LED DC OK indicator, aiding in quick status checks. Both input and output terminals have 4 Pins (Rated 600 V / 30 A) and 4 Pins (Rated 600 V / 30 A) for secure connections. Designed for extreme environments, it operates from 3-Phase -25°C to +70°C (-40°C Cold Start) 2-Phase -25°C to +60°C (-40°C Cold Start) and has a storage temperature range of -40°C to +85°C. Take the First Step with a Quote for your requirement of 24V DIN Rail Power Supply. Choose us for unparalleled pricing and support over other Dealers & Distributors.
