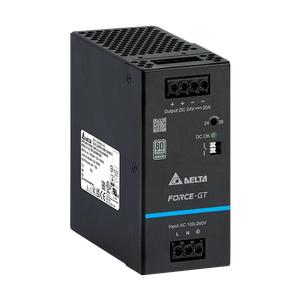

Delta DRF-24V480W1GTA: 480W 24V DIN Rail Power Supply

Technical Specifications of Delta 480W 24V DIN Rail Power Supply DRF-24V480W1GTA:

Output Current	20A
Output Voltage	24V
Output Power	480W
Input Current	4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac

Delta 480W 24V DIN Rail Power Supply DRF-24V480W1GTA Technical Specifications:

Specification	Value
Output Current	20A
Output Voltage	24V
Output Voltage Adjustment Range	24-28 Vdc
Output Power	480W
Line Regulation	± 0.5% @ 115 Vac & 230 Vac
Load Regulation	± 0.5%
PARD	100 mVpp typ. @ 0°C to +70°C 300 mVpp typ. @ -30°C to 0°C
Start-up Time	500 ms typ. @ 115 Vac & 230 Vac
Hold-up Time	25 ms typ. @ 115 Vac & 230 Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)	± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 kHz)
Start-up with Capacitive Loads	10,000 µF Max
Rise Time	30 ms typ. @ 115 Vac & 230Vac
Nominal Input Voltage	100-240 Vac
Input Voltage Range	90-264 Vac
Nominal Input Frequency	50-60 Hz
Input Frequency Range	47-63Hz
DC Input Voltage Range	127-375 Vdc
Input Current	4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac
Input Power (Standby Mode)	0.75 W typ. @ 115 Vac & 230 Vac
Efficiency at 100% load	95.0% typ. @ 230 Vac
Inrush Current	40 A typ. @ 230 Vac
Power Factor at 100% load	> 0.96 @ 115 Vac & > 0.93 @ 230 Vac
Leakage Current	< 1.5 mA @ 240 Vac
Case Chassis / Cover	Metal
Indicator	Green LED DC OK
Cooling System	Convection
Input Terminal	3 Pins (Rated 600 V / 30 A)
Output Terminal	4 Pins (Rated 600 V / 30 A)
Signal Terminal	2 Pins (Rated 300 V / 6 A)
Noise Sound Pressure Level (SPL)	< 25 dBA
Mounting Rail	Standard TS35 DIN Rail in accordance with EN 60715
Wire	Input: AWG 14-12 Output: AWG 14-12 DC OK: AWG 22-16
Unit Weight	0.88 kg (1.94 lb)
Vibration (Operating)	IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz; 4 G peak; 60 min per axis for all X, Y, Z directions
Operating Temperature	-30°C to +70°C (-40°C Cold Start)
Storage Temperature	-40°C to +85°C
Power De-rating	Temperature: > 60°C de-rate power by 2.5 % / °C Input Voltage: < 100Vac de-rate power by 1% / Vac
Operating Humidity	5 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)	IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction
Operating Altitude	0 to 5,000 Meters (16,400 ft.)
Pollution Degree	2
Over Voltage Category	II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Talk to Our Engineer for Delta 480W 24V DIN Rail Power Supply DRF-24V480W1GTA with exclusive offers. Core System Specifications of DRF-24V480W1GTA are 20A Output Current, 24V Output Voltage, 480W Output Power at competitive prices. It operates with a nominal input voltage of 100-240 Vac and supports an input voltage range of 90-264 Vac. The power supply covers a nominal input frequency of 50-60 Hz, with a broader input frequency range of 47-63Hz. For DC input, it accepts a range from 127-375 Vdc. With an input current of 4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac, it ensures efficient performance. The unit features a Green LED DC OK indicator, aiding in quick status checks. Both input and output terminals have 3 Pins (Rated 600 V / 30 A) for secure connections. Designed for extreme environments, it operates from -30°C to +70°C (-40°C Cold Start) and has a storage temperature range of -40°C to +85°C. Don't Miss Out on a Quote for your requirement of 480W 24V DIN Rail Power Supply. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
