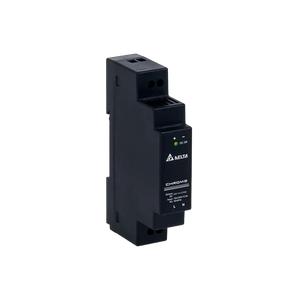

Delta DRC-24V10W1AG 0.42A 24V 10W DIN Rail Power Supply
The Delta DRC-24V10W1AG is a compact 0.42A 24V DIN Rail Power Supply designed for industrial automation and control systems requiring low-power DC operation. It supports a nominal input of 100-240Vac with a flexible input range of 90-264Vac at 50-60Hz. Manufactured by Delta industrial automation products, it belongs to the Delta power supply solutions and the DIN Rail CHROME Series, ensuring reliable, long-term operation in industrial environments.
| Output Current | Delta |
| Product Type | SMPS |
| Product | DRC-24V10W1AG |
Delta 0.42A 24V DIN Rail Power Supply DRC-24V10W1AG Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 0.42A |
| Output Voltage | 24V |
| Output Power | 10W |
| Line Regulation | < 0.5% (@ 90-264Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 90-264Vac input, 0-100% load) |
| PARD | < 100mVpp |
| Start-up Time | < 2,000ms @ nominal input (100% load) |
| Hold-up Time | > 10ms @ 115Vac, > 60ms @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 90-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz) |
| Start-up with Capacitive Loads | 3,000µF Max |
| Rise Time | < 70ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 125-375Vdc |
| Input Current | < 0.30A @ 115Vac, < 0.20A @ 230Vac |
| Efficiency at 100% load | > 80.0% @ 115Vac & 230Vac |
| Inrush Current | < 15A @ 115Vac, < 30A @ 230Vac |
| Leakage Current | < 0.25mA @ 240Vac |
| Power Dissipation | 0% load: < 0.3W @ 115Vac & 230Vac 100% load: < 2.6W @ 115Vac & 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Output Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input / Output: AWG 24-12 |
| Unit Weight | 0.065 kg (0.14 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms, 3 shocks for each 3 directions, 9 times in total |
| Operating Temperature | -25°C to +71°C |
| Storage Temperature | -25°C to +85°C |
| Power De-rating | > 55°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | II |
The Delta DRC-24V10W1AG is ideal for small control panels, sensor modules, and low-power industrial automation applications that demand precise and stable 24V DC output. Its DIN rail mounting ensures neat panel integration, while the Green LED DC OK indicator allows quick verification of operational status, simplifying maintenance and monitoring.
Engineered to withstand challenging industrial conditions, this 0.42A 24V DIN Rail Power Supply operates efficiently within a temperature range of -25°C to +71°C and can be safely stored between -25°C and +85°C. The robust design guarantees consistent output even under fluctuating load conditions, making it suitable for process automation, monitoring systems, and factory installations requiring reliable low-power DC supply.
Industries seeking dependable low-current DIN rail power solutions will find the Delta DRC-24V10W1AG a practical choice. Request a quote today to secure competitive pricing and dedicated support, ensuring uninterrupted 24V DC operation for your automation systems and small control equipment.
